127*22.23*12.7 Woodmizer Bandsaw Sharpening Grinding Wheels WM7/34 Grinder Disc
Product Details
| Band Saw Sharpening CBN Grinding WheelSize: | 127*22.23*12.7 WM7/34 | CBN Grinding Wheel Shape: | Flat-Shaped,Cup-Shaped,1A1,Dish, Bowl Etc |
|---|---|---|---|
| Abrasive: | Cubic Boron Nitride | Bonding Agent: | Metal,Resin,Ceramic,Resin Or Ceramic,A |
| Grit Mesh: | B151 | Bond: | Electroplated |
| Packing: | Box And Cartons, With Plastic Bags | Usage: | Grinding,sharpening,high Speed Steel Slotting,fluting,grooving |
| Highlight |
Woodmizer Bandsaw Sharpening Grinding Wheels,WM7/34 Sharpening Grinding Wheels,WM7/34 Grinder Disc |
||
Product Description

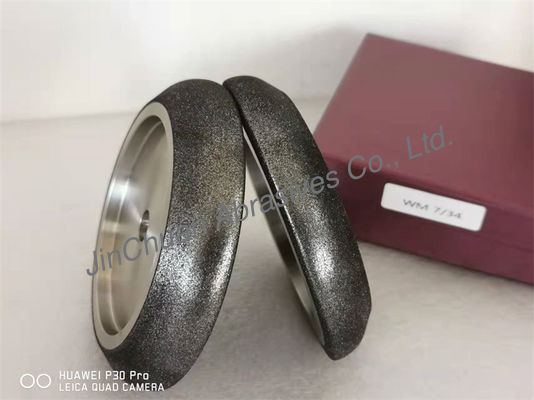

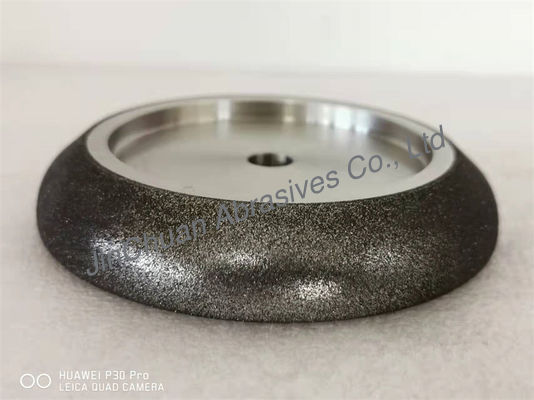

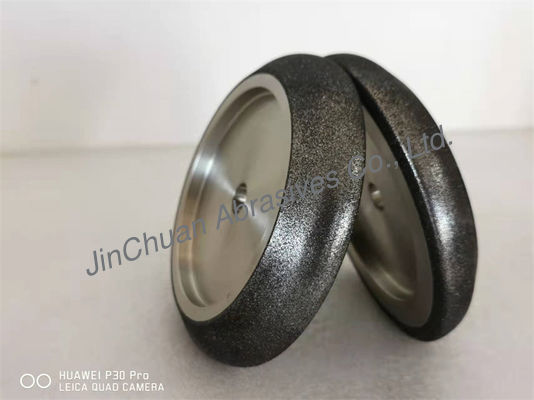

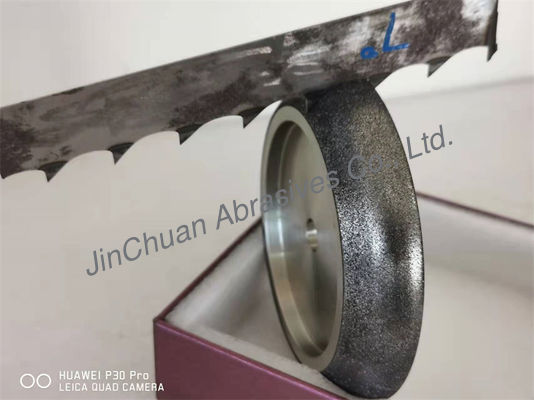

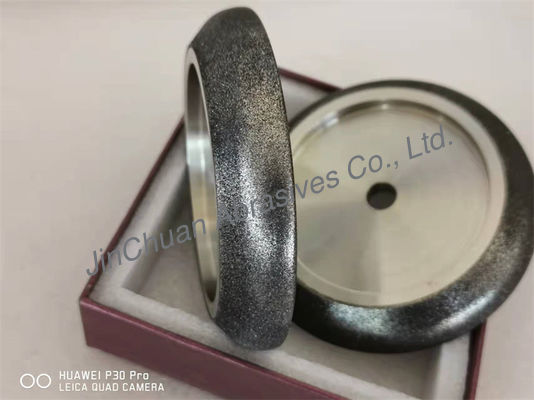

127*22.23*12.7 Woodmizer Bandsaw Sharpening Grinding Wheels WM7/34 Grinder Disc
Main Information Of CBN grinding Wheels
CBN or Cubic Boron Nitride grinding wheels are electroplated and nickel coated. Electroplating offers many advantages over other applications. It creates a more aggressive bond over other applications and will hold a form longer. It also performs a higher stock removal rate and will last for years. They are designed for sharpening wood band saw only and should not be used for other applications
| Name | 5 inch bandsaw sharpening grinding wheels |
| outer diameter | 127mm |
| tooth spacing | 22.23mm |
| bore diameter | 12.7mm |
| turbo | 7/34 |
| grit size | B151 |
| suitable for |
woodmizer band saw bade |
| minimum order quantity | 1~10/10~50/>50pcs |
Any electroplated CBN sharpening wheel for band saw grinding can be produced according to Your requirements.
Different wheel profiles for all kind of wood and seasons are available:
Few mostly used tooth angles, other angles are available as well.
10/30-universal grinding wheel profile, which is used mostly.
9/29- for winter time cutting suitable profile. Sometimes used to cut harder wood as well.
13/29- for soft wood cutting
4/32- for cutting very hard wood or deeply frozen wood.
7 degree profiles- special angles for cutting hickory, white oak, ash, hard maple and other wood.
Competitive Advantages
1)Sharp. Fast grinding and fast sharpneing your tools
2) Long life. Much longer life than traditional abrasive wheels
3) Well balanced each wheels.
4) Outter diameter is no change from start to end
5) No dust coming out when sharpening and grinding
FAQ:
1. Do you supply technical supports?
Yes, we supply the following technical supports for our customers:
1) Free design for your products
2) Free drawing can be supplied for the designation
3) Recommend wheel bonding, grit size and concentrations for your apllication
2. How do you ship your products?
Normally we shipped by express, Fedex, DHL, TNT, EMS etc. If you have your own shipping agents, you can let them collect the goods directly. For large quantity, can be delivered by air or by ship. Products can be collected at any ports in China. Tianjin, Qingdao, Shanghai, Guangzhou, Shenzhen or any other cities.
NOTE: We have over 1000 types of diamond cbn grinding wheels, if the grinding wheel you are using is not found here, please send us your grinding wheel picture and contact us with your details.
