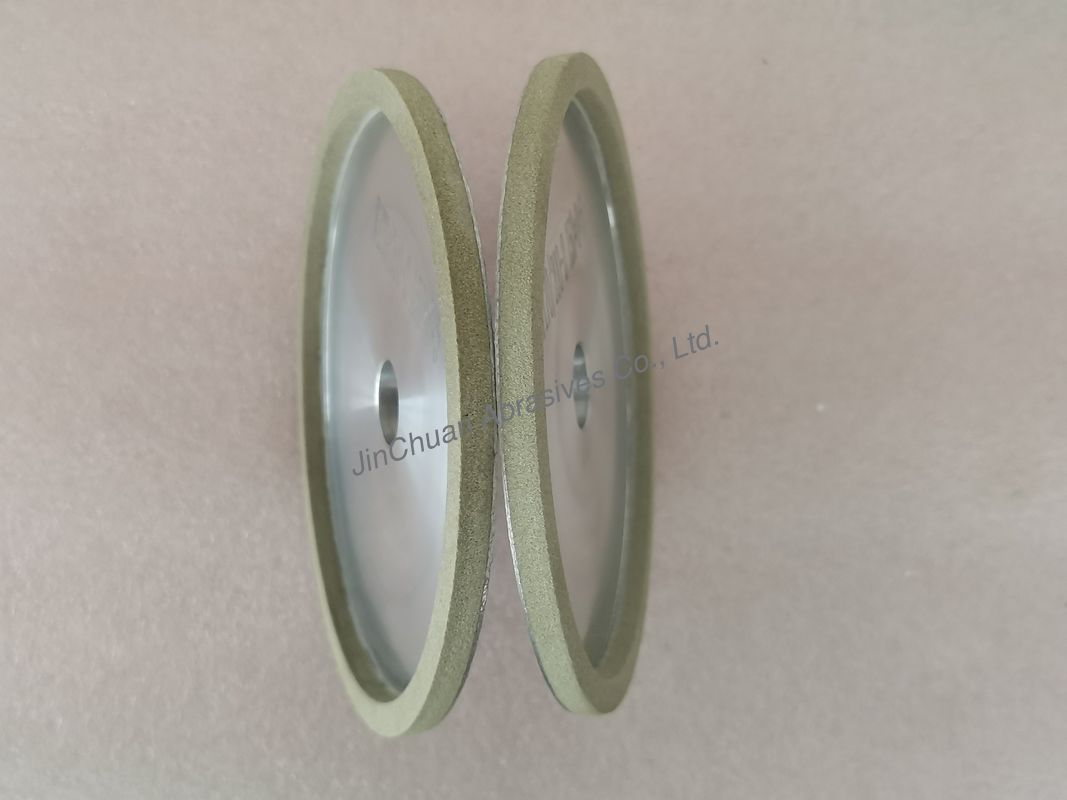

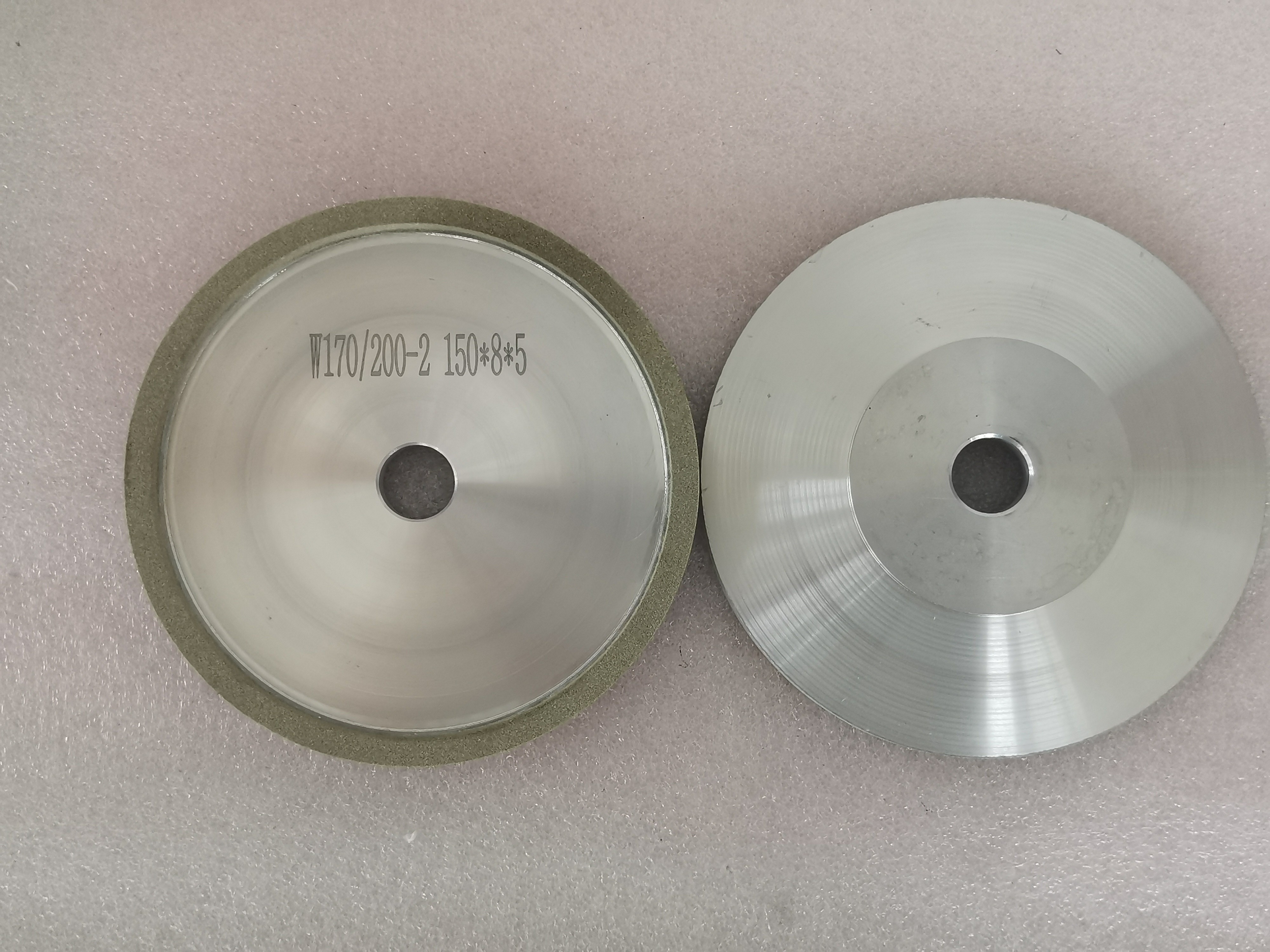

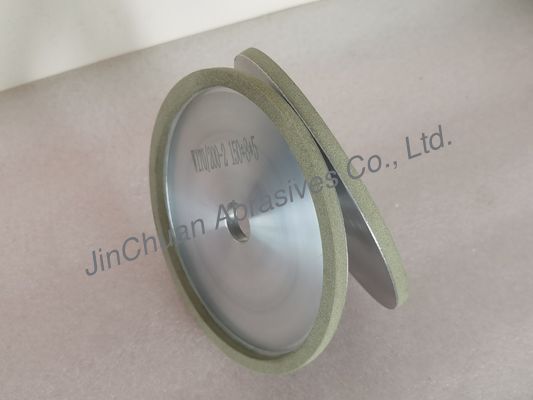

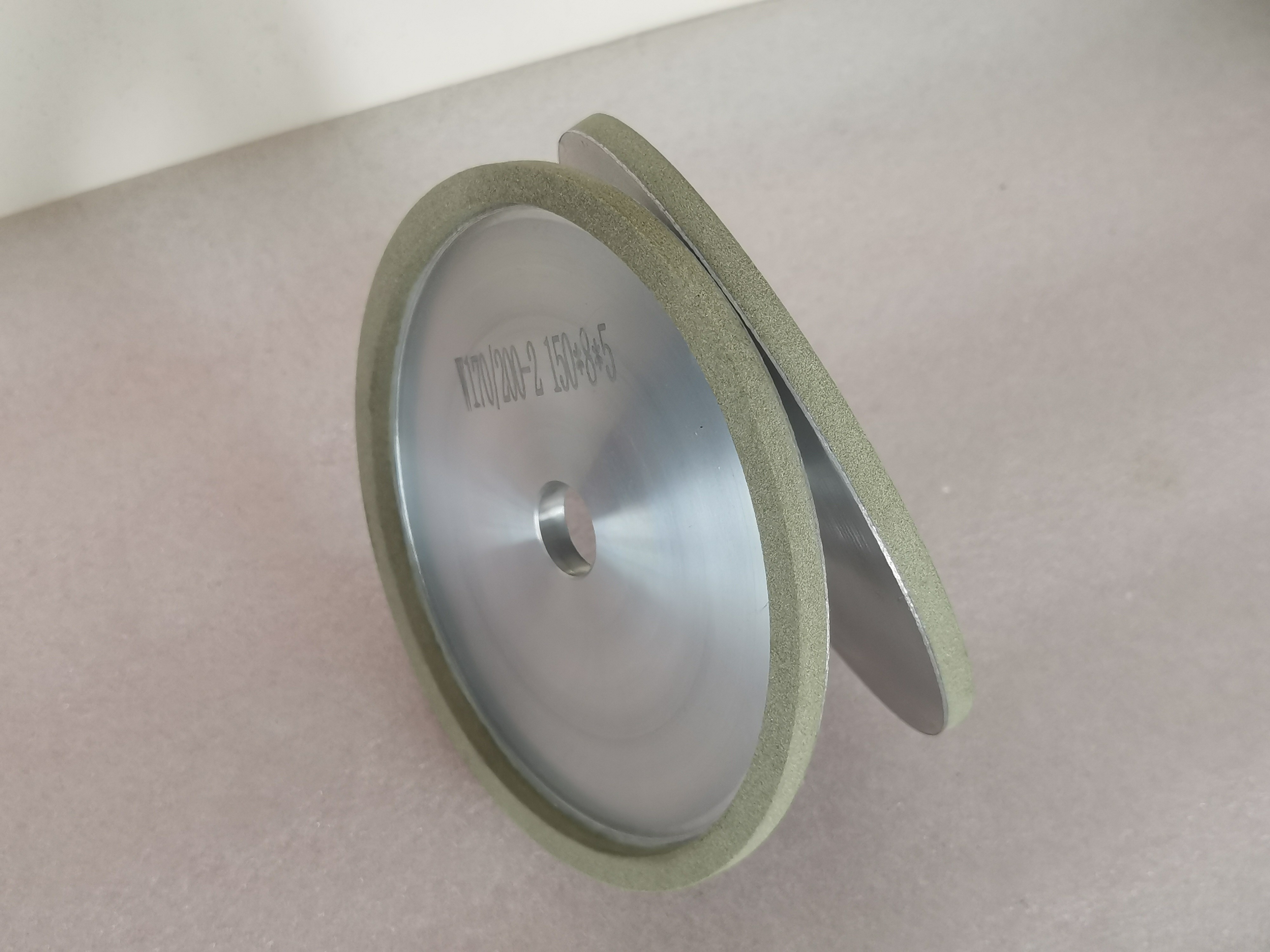

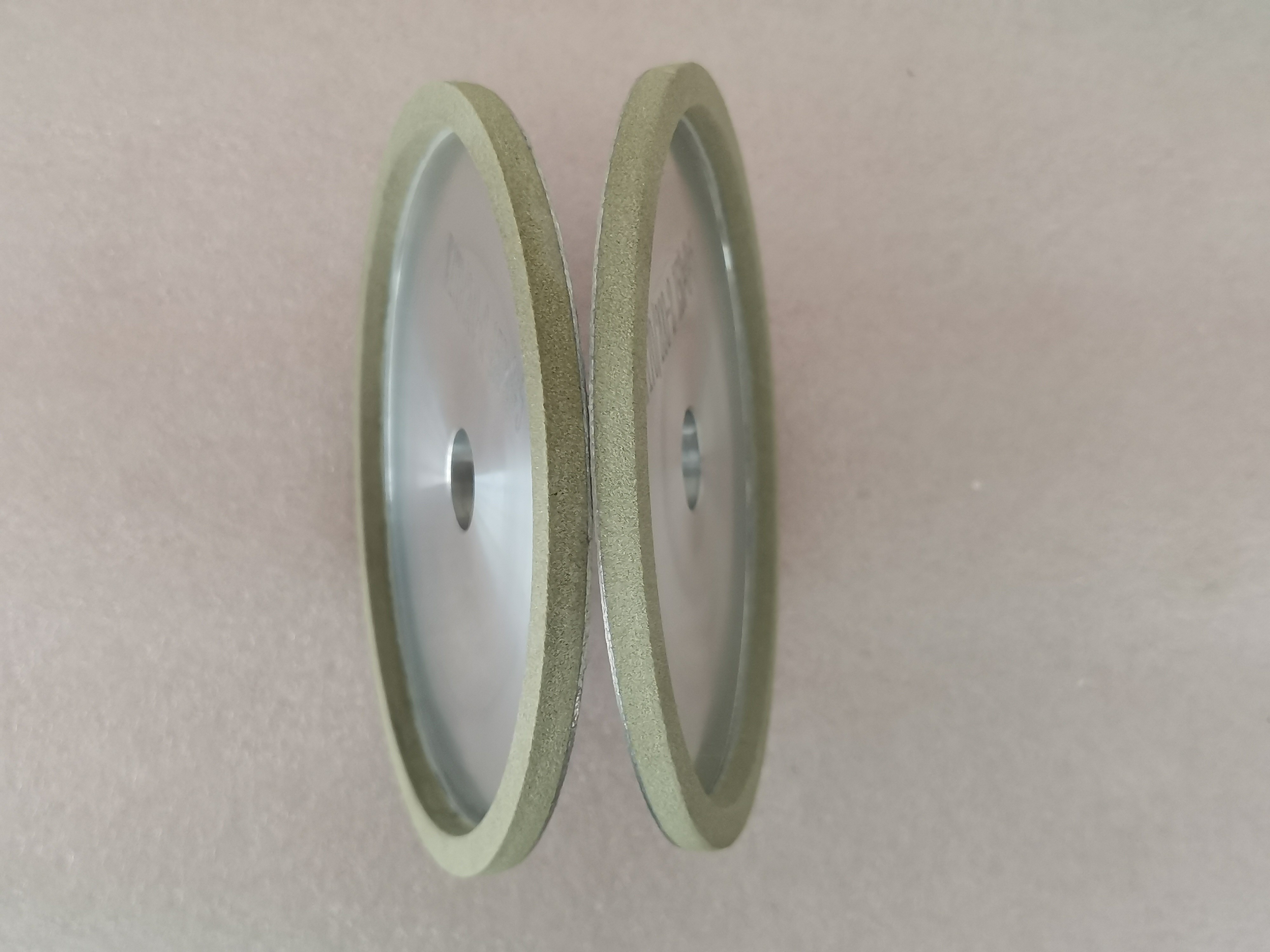

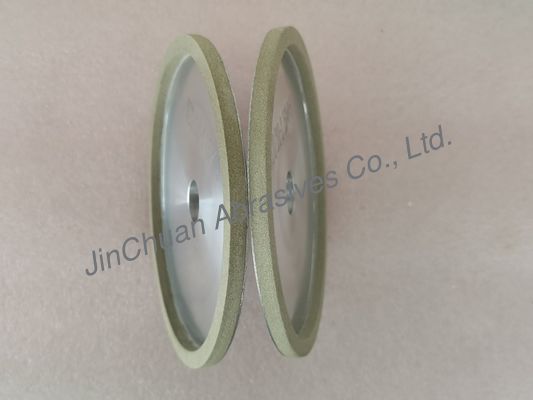

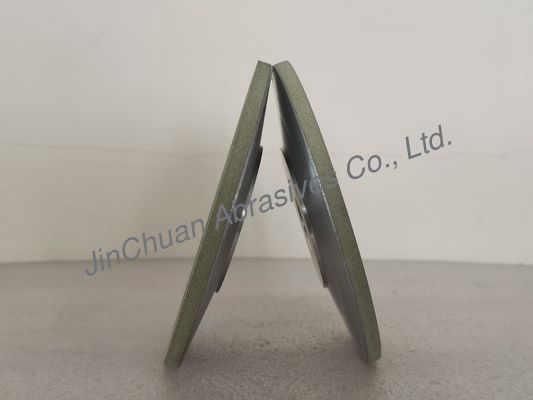

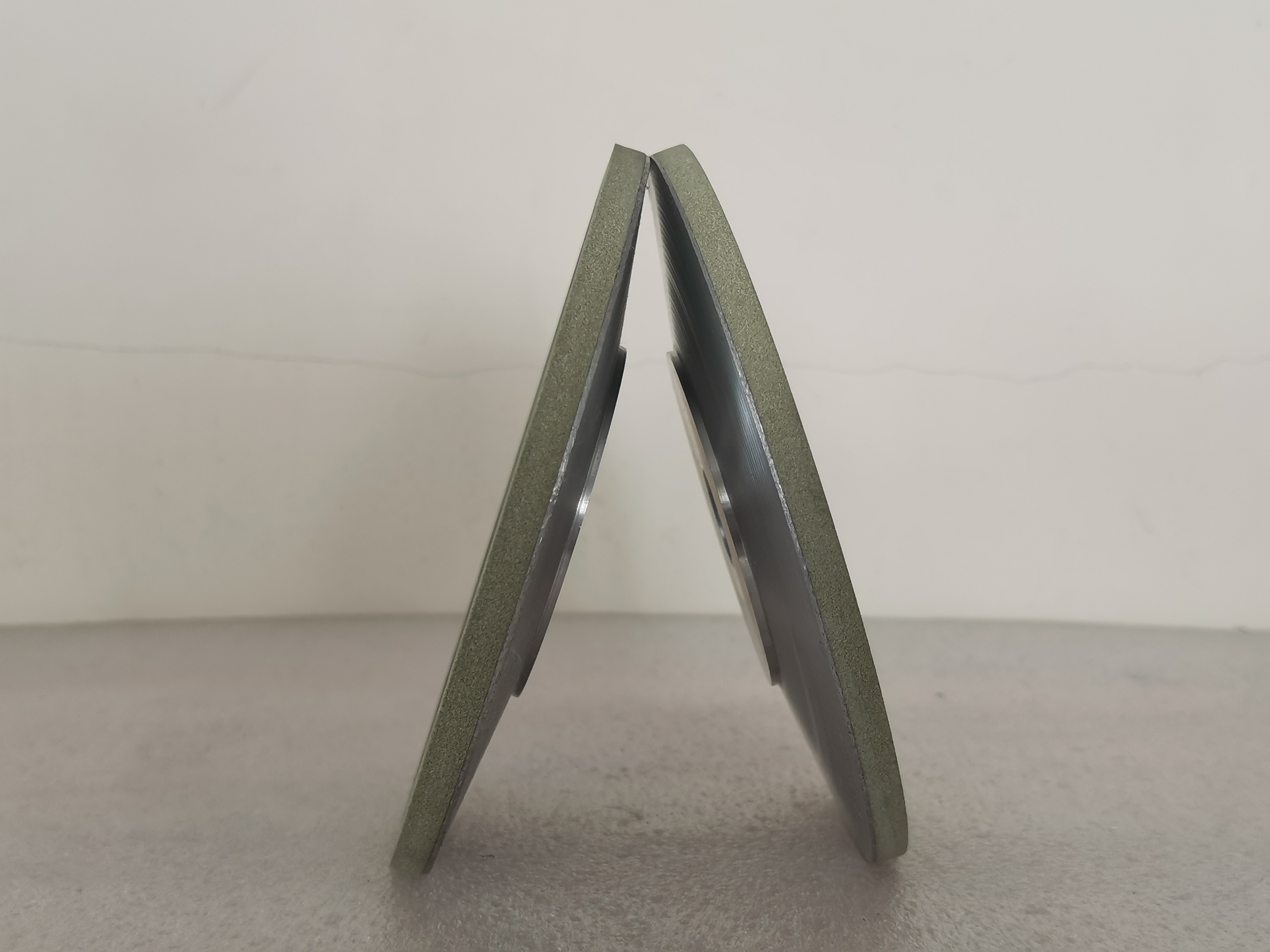

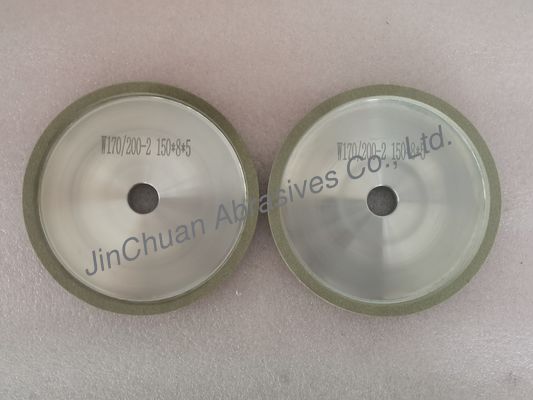

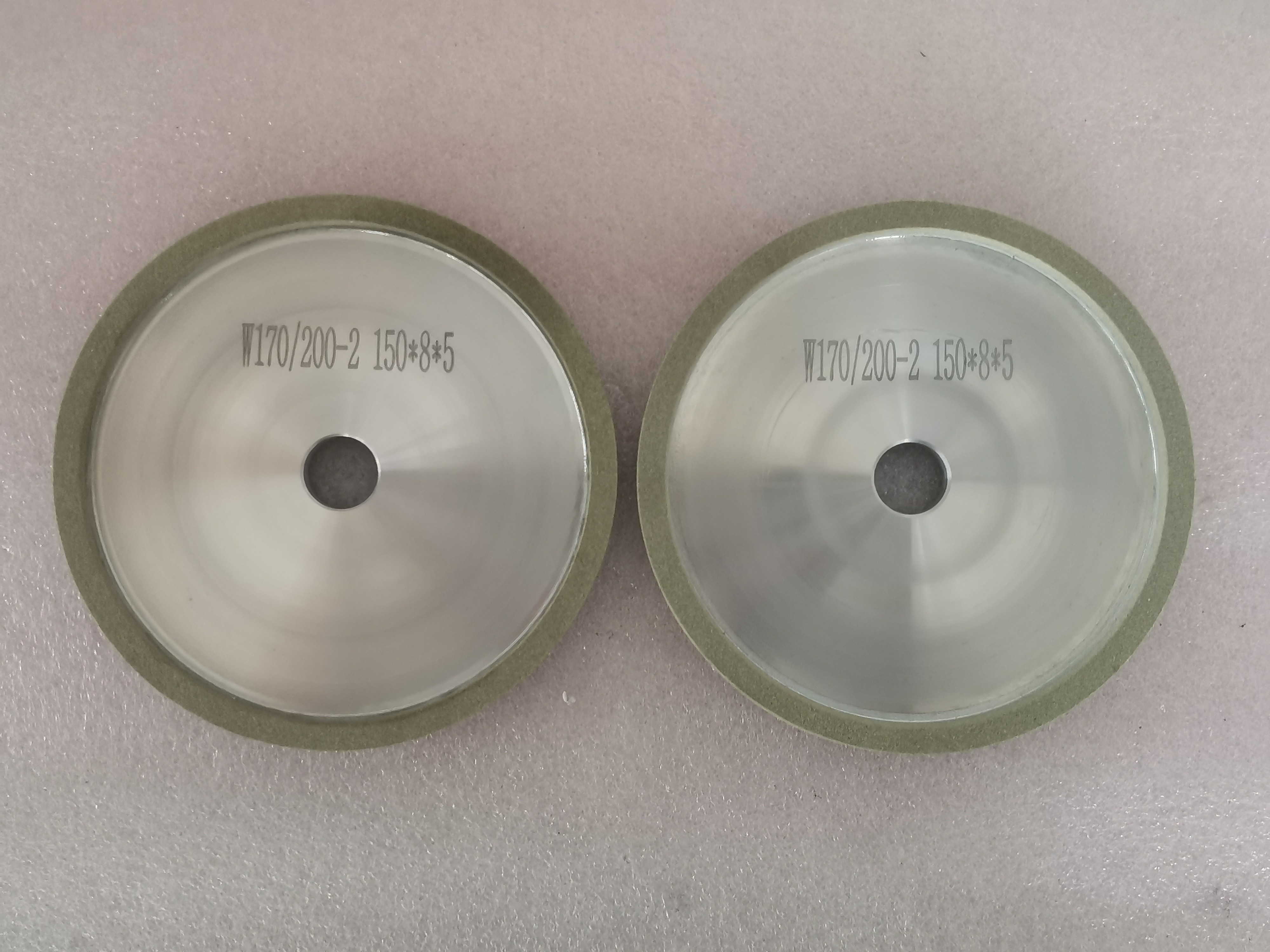

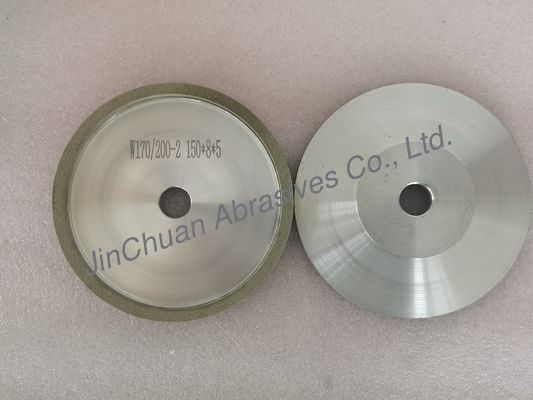

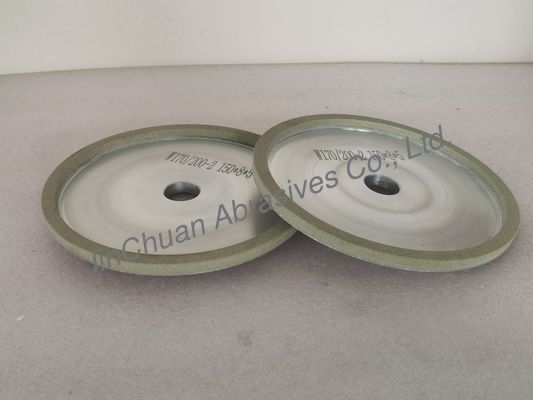

4A2 Vitrified Diamond Grinding Wheel 150*8*20*7*3 D91 C125

4A2 Vitrified Diamond Grinding Wheel 150*8*20*7*3 D91 C125
Features Gallery Product Description Request A Quote
Features
Specifications
Shape: 4A2
Bonding Agent: Vitrifiy
Color: Silver
Usage: Grinding
Material: Aluminium
Grit: D91
Size: 150*8*20*7*3
Highlight:

4A2 Vitrified Diamond Grinding Wheel

,

D91 Vitrified Diamond Grinding Wheel

,

C125 vitrified diamond wheel
Basic Infomation
Place of Origin: China
Brand Name: JC
Certification: ISO9001:2015,ISOCE16949
Model Number: 4A2 150*8*20*7*3 D91 C125
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 14days
Payment Terms: T/T
Supply Ability: 1000 pieces in two weeks
Product Description

Vitrified Diamond Grinding Wheel 4A2 150*8*20*7*3 D91 C125



Name:Vitrified Diamond Grinding Wheel 4A2

Description:Vitrified diamond grinding wheels are a kind of circular bonded abrasive with through-hole in the center which made of diamond powder and vitrified (ceramic) bond. It is composed of the diamond layer, transition layer, and matrix.

The main components of the vitrified bond: some mineral raw materials and vitrified material with the low melting point, and the composition is more and complex. Its raw materials mainly include 3 parts: Part 1 is plasticity raw materials, such as loess, clay, bentonite, and etc. Part 2 is barren raw materials, such as fluorite, quartz and etc. Part 3 is accelerating melting raw materials, such as borax glass, talc, feldspar, and etc.

Applications:PCD and PCBN tools, tungsten carbide, engineering ceramic

4A2 Vitrified Diamond Grinding Wheel 150*8*20*7*3 D91 C125 04A2 Vitrified Diamond Grinding Wheel 150*8*20*7*3 D91 C125 14A2 Vitrified Diamond Grinding Wheel 150*8*20*7*3 D91 C125 2
