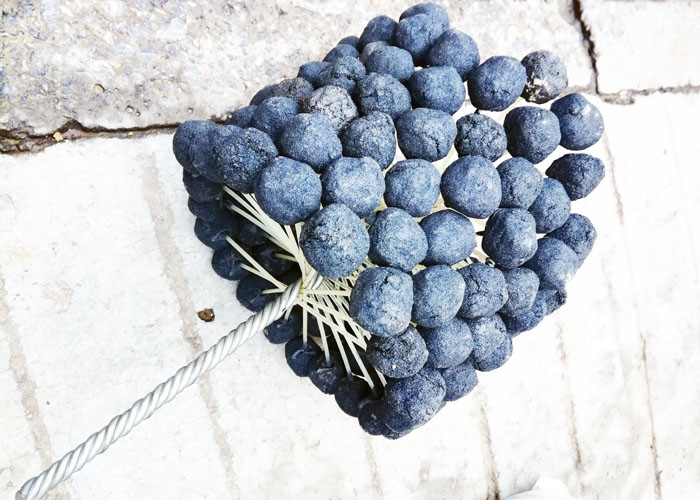

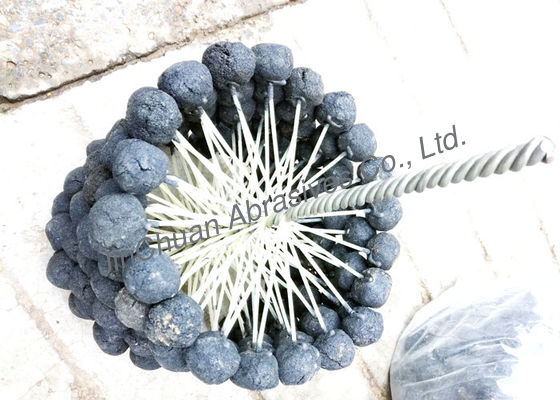

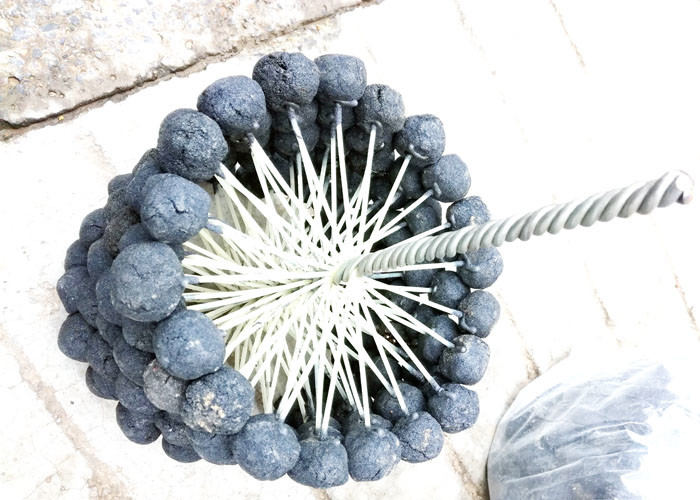

178mm Diameter Silicon Carbide Honing Brush/Flexible Honing Tools Used to removing burr
Product Details
| Color: | Black | Material: | Silicon Carbide |
|---|---|---|---|
| Packing: | Carton | Weight: | 3kg |
| Length: | 300mm | Grit: | 180# |
| Highlight |
flex hone brush,honing brush set |
||
Product Description
Silicon Carbide Honing Brush/Flexible Honing Tools Used to removing burr
| Product Name | Honing brush |
| abrsives | Silicon carbide |
| Size | 7" |
| Diameter | 178mm |
| Length | 300mm |
| Package | Carton box |
| Color | black |
*The size of the honing brush ordered should be about 10% larger than the actual honing hole
Our honing brushes provide you with the perfect solution for finishing, deburring and flanging requirements.Can be customized for your needs of size and granularity, using flexible honing process, can provide superior surface finish on any substrate.Our flexible machine differs from any other honing tool in that it can produce unmatched controlled surface states.
Normally this kind of honing brush can enter place where normal tools are difficult to access , such as cracks and grooves to removing burr , sharp edge becoming obtusely smooth and even arcs , so as to achieve the ideal effect of de burring ,cutting edge passivation and surface finishing
Advantage
1,The flexible nylon provides the right pressure to create an ideal plover hole
2,Automatic centering and automatic calibrate the hole surface for fine consistent machining
3,original accuracy and dimension of the work piece are not affected
4,Reduce Ra, reach in to a smooth surface finish,undeformed and has an ideal edge breakthrough
5,The best cost-effective product
6,Safe economical and effective .
7,Simple automatic or manual operation
Application
Typical applications include: deburring and polishing the surface of the workpiece; Hydraulic valve hole groove edge burr, cross hole burr, air conditioning refrigerator (compressor) to burr, cylinder block to burr, engine parts, mechanical processing, hole processing, brake hub processing; It is also suitable for polishing some cone - shaped, cone - shaped and Venn - tube - shaped holes. It can conveniently and quickly make the best surface treatment for cylinder, valve, pipe cavity and pipe of various shapes and sizes. The biggest advantage is: can automatically centering, automatic calibration of fine and consistent processing of the surface of the hole, does not affect the original precision and scale of the workpiece. Easy to use, safe, economical and effective.
Customized information
| Item | Customized Information |
| Grit | 60# , 80# ,120# , 180# , 240# , 320# , 500# , 600# , 800# , 1000# , 1200# , 1500# , 2000# , 3000# |
| Usually used grit | 120#~320# . |
| Diameter | D175 , D200 , D220 , D230, D280 , D310 , D340 , D420 |
| 3mm to 600mm can customize | |
| Brush Shank Diameter | 1.8mm to 30mm can customize |
| Total length | 20mm to 1500mm can customize |
*Heavy-duty honing brushes are commonly used in cylinder blocks or linings, fixed diesel, oil and gas pipelines, Marine engines, and other heavy-duty applications
Co
Why choose us?
1,We are factory production, the price is favorable
2,Experienced in making sure that the cutting edge is sharp and the cutting surface is smooth and wear resistant.
3,Using mirror grinding technology, the production of large space design
4,Fast chip removal speed, high cutting efficiency, dynamic balance test
5,We have regular sizes and can also be customized according to the drawings
6,Looking forward to your inquiry
