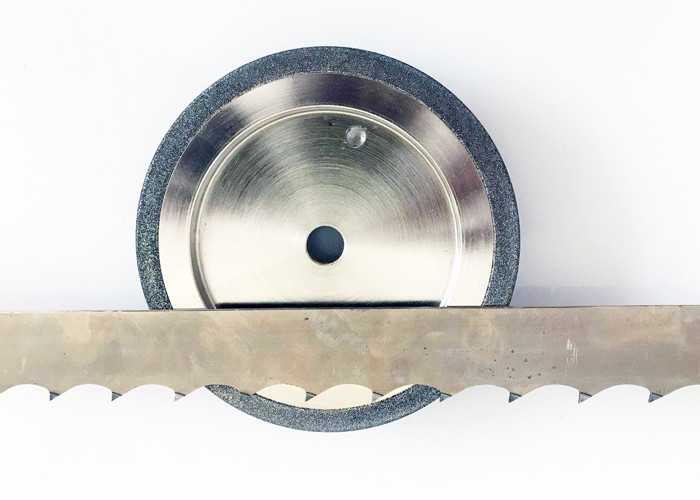

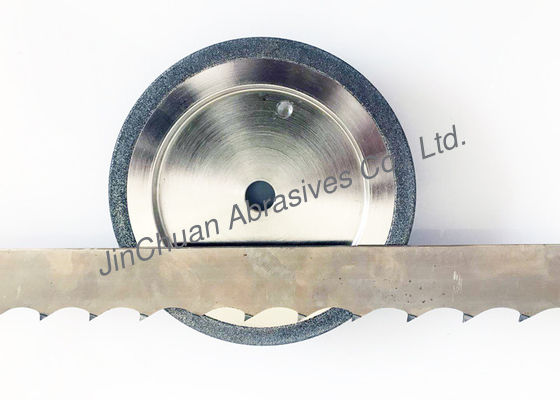

HSS CBN Abrasive Wheels , Resin Bonded Vitrified CBN Grinding Wheels
Product Details
| Abrasive: | CBN | Base Body: | Steel |
|---|---|---|---|
| Profile: | 10/30, 9/29 | Size: | Make According To U Drawing Size |
| Working Life: | As Longer As U Want | Application: | Used For Wood Band Saw Sharpening |
| Highlight |
cbn abrasive wheels,cbn wheel 180 grit |
||
Product Description
CBN wheels for band saw sharpening usd for wood mizer 13/29 4", 5", 6",8",10" 12"
1. Specification of CBN grinding wheels
Diameters: 127mm (5 inch), 150mm (6 inch) , 203mm (8 inch)
Holes: 12.7 mm, 20 mm, 25.4 mm or 31.75 mm
Thickness:7/8"
2. Mostly used CBN wheel are for band saws of following producers
WM profiles, Mill, Simonds, Dakin-Flathers Ripper37 (22mm,19mm), Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others...
3. Different wheel profiles for all kind of wood and seasons are available *
10/30 - mostly used universal grinding wheel profile *
9/29 - perfectly prepares band saws for winter time cutting, or cutting hard Wood *
13/29 - wheel profile which prepares band saws for soft wood cutting *
4/32 - wheel profile which can prepare band saws for very frozen and very hard wood cutting *
7/34 the CBN wheels profile is recommended for hardwood
We have been making such electroplated CBN grinding wheel for more than 10 years. as a professional manufacturer,we can send u wood mizer 9/29 10/30 without u drawing size. once get u payment, we can
send the wheels to u immediately.
If u need any other profile CBN grinding wheels, just send us u drawing size will be availble for our production. the bandsaw size is also ok.
Advantages :
Our CBN wheels do not need to truing during its sharping process. it can keep its profile correctly.
It has longer working life comparing with trational grinding wheel.
Our CBN wheels can improve u production effiency.
It can keep u band saw much more precious.
