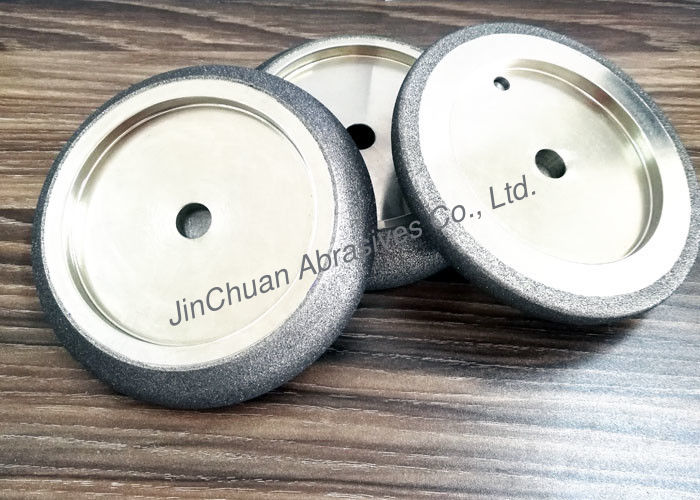

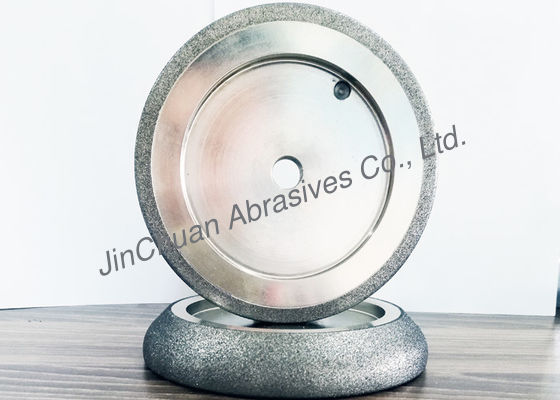

Thermal Stability Cubic Boron Nitride CBN Grinding Wheels For Wood Band Sawmill Blades

Thermal Stability Cubic Boron Nitride CBN Grinding Wheels For Wood Band Sawmill Blades

  • High Light

    cbn abrasive wheels

    ,

    cbn wheel 180 grit

  • Grit
    CBN
  • Specification
    Make According To U Drawing Size
  • Application
    Wood Band Saw Sharpening
  • Grit Size
    B151
  • Size
    5"
  • Abrasive
    CBN
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO9001:2015&ISOCE16949
  • Model Number
    JC-Wood mizer 7/39.5
  • Minimum Order Quantity
    5Pcs
  • Price
    Negotiable
  • Packaging Details
    Purple color box with carton box
  • Delivery Time
    5-7 working days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    2000 pcs per month

Thermal Stability Cubic Boron Nitride CBN Grinding Wheels For Wood Band Sawmill Blades

CBN sharpening wheels for wood band saw sharpening same profile as wood mizer 7/39.5



Description



Mostly used CBN wheels are for band saw of following producers:



WM Profiles, Mill, Simonds, Dakin-Flathers Ripper 37(22mm,19mm), Lenox, Lenox Woodmaster C,

Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others



Different wheel profiles for all kind of wood and seasons are available

* 10/30 - mostly used universal grinding wheel profile

* 9/29 - perfectly prepares band saws for winter time cutting, or cutting hard Wood

* 4/32 - wheel profile which can prepare band saws for very frozen and very hard wood cutting

* 7/34 the CBN wheels profile is recommended for hardwood

* 13/29 - wheel profile which prepares band saws for soft wood cutting





Specification

Thermal Stability Cubic Boron Nitride CBN Grinding Wheels For Wood Band Sawmill Blades 0



Outside diameter Inside diameter Thickness Angle Mesh size
5" 12.7 22.23 7/39.5 B151









And also we can make any other profile grinding wheels according to u band saw drawing with size to show us the profile, also confirm the OD, ID. mesh size will be available for our production.



In the past, large band saws for stationary mills were sharpened  with conventional or ziconia abrasives in vitrified or resinoid bonds. These wheels required almost continuous dressing by the saw filer to retain the profile and prevent the wheels from burning the blade. Because our CBN wheels are electroplated onto a steel core, they offer significant advantages over the conventional abrasive wheels.



Advantages:



1. Wheel cores can be recycled and replated, thus reducing waste

2. No loss of profile during grinding, no dressing required
3. Cooler cutting CBN results in less metallurgical damage to the blade,
and longer life between re-grinds. No need to re-open the wheel face
4. The bandsaw itself is sharper after grinding and can be run at higher
production speeds
5. No abrasive dust generated that can damage machine components
6.Eliminates the possibility of wheel breakage
7. No loss in wheel diameter during grinding; wheel continues to operate
at the optimum peripheral speed
