Oil And Gas Industry Diamond Grinding Pins With Longer Working Life Fast Grinding Speed

5PCS
MOQ
Negotiable
Price
Oil And Gas Industry Diamond Grinding Pins With Longer Working Life Fast Grinding Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Basebody: Steel
Abrasive: Diamond
Bond: Electroplated
Specification: Make According To U Drawing Size
Hardness: Standard
Highlight:

diamond grinding bit

,

diamond grinding burrs
Basic Infomation
Place of Origin: CHINA
Brand Name: JC
Certification: ISO9001:2015&ISOCE16949
Model Number: JC-006
Payment & Shipping Terms
Packaging Details: carton box
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 pcs per month
Product Description

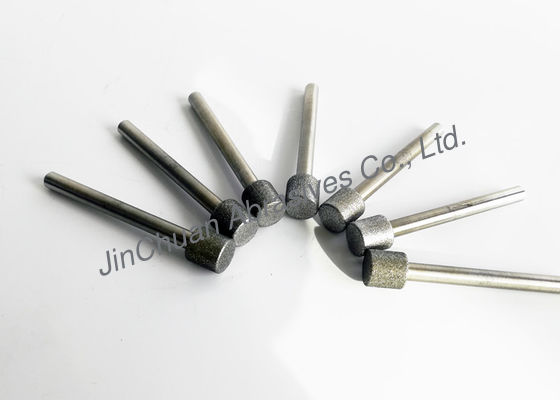

Electroplated diamond grinding pins for oil and gas industry



Description



We make electroplated diamond burs /bits superior performance in quality of the grinding and in the lifetime of the burs competitive price.



We make the high quality diamond burs and reamers used in the producction process of small to large diameter matrix drill bits.



Our tools offer superior performance both in quality of the grinding and in the lifetime of the burs to the current items in use in the PDC drill bits  manufacturing process.




SPECIFICATION





Oil And Gas Industry Diamond Grinding Pins With Longer Working Life Fast Grinding Speed 0



SIZE in MM Size in Inch
D T Y L D T Y L
8.89 12.7 6.35 89 0.35 0.5 0.25 3.5
11.13 12.7 6.35 89 0.438 0.5 0.25 3.5
12.7 12.7 6.35 89 0.5 0.5 0.25 3.5
13.4 12.7 6.35 89 0.527 0.5 0.25 3.5
15.82 12.7 6.35 89 0.623 0.5 0.25 3.5
19 12.7 6.35 89 0.748 0.5 0.25 3.5
21.95 12.7 6.35 89 0.864 0.5 0.25 3.5
8.5 12.7 3.18 63 0.335 0.5 0.125 2.5
5.3 12.7 3.18 46 0.209 0.5 0.125 1.75
