Customized Grit Size Flexible Honing Brush For Hydraulic And Ic Engine Bores

Basic Information
Place of Origin: China
Brand Name: JC
Certification: ISO9001:2015&ISOCE16949
Minimum Order Quantity: 5 pieces
Price: USD+5-100+ PIECES
Packaging Details: Carton box
Payment Terms: Western Union, L/C, T/T
Material: Sic Application: Used For Inner Hole Grinding And Sharpening
Specification: Make According To U Drawing Rod: Steel
Type: Industrial Brush Function: Cleaning
High Light:

flex hone brush

,

honing brush set

Honing brush can be made according to u drawing size with longer working life and high effiency



Specification



Description honing abrasive brush
Specification 4---500mm
Grit size 80--3000 #
Material boron carbide, black silicon carbide, green silicon carbide, brown corundum, white corundum
Speed 600-1400 RPM



Descriptions



The range of our honing brush covevrs a wide range of grits for not only cleaning and finishing of bores.

both for hydraulic & IC ENGINE BORES AND LINERS. These are also extensively used in Plateau honing

of small bores. The special construction afford a mild but constant pressure against the wall of the cylinder giving a fairly uniform material removal & surface finish in the bore.  grits and sizes can be selected based on individual application and techincal parameters.



Aapplication:

Our honing brush can remove internal burrs and passivate the angle of internal grooves. Burrs will be generated at the grooves and intersecting lines of the internal holes in the general mehanical addiation.

These burrs will scratch the rotary axis that is compatible with the holes, reduce the accuracy. and cause

leakage in the valve body, thus affecting the product quality.



Benefits



The effect of polishing, after honing, makes the hole have higher accuracy, has achieved more accurate matching .



The abrasive honing brush is mainly used for polshing the precise hole and dressing and polishing the clinder,cylinder body, cylinder steeve, valve body and seat widely used in aerospace, automotive, hydraulic

and other industries.





Specification for honing abrasive brush: 4---500mm

The commonly used grain of honing brush: 80--3000 #

Abrasive honing brush material: boron carbide, black silicon carbide, green silicon carbide, brown corundum, white corundum

Recommended speed of honing abrasive brush: 600-1400 RPM

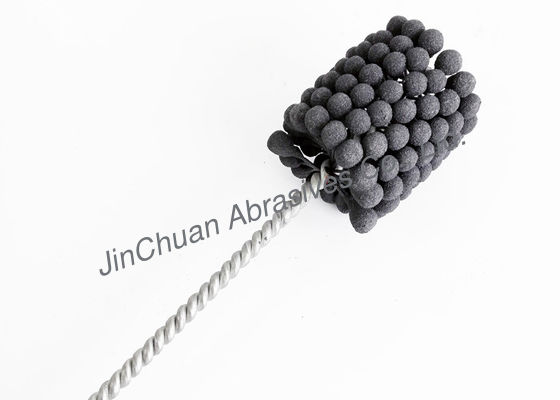

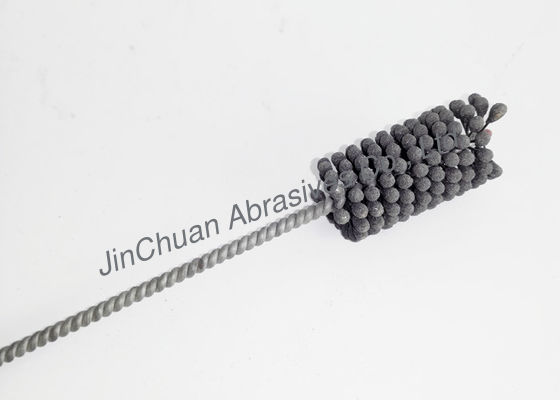

Customized Grit Size Flexible Honing Brush For Hydraulic And Ic Engine Bores 0



If u are interested in our production or would like to ask more  about it,  pls just add my whats app/ we chat: 0086-13783415132.
