Highlight
B80/100 CBN Grinding Head
,Steel Matrix CBN Grinding Head
,Customized CBN Grinding Head
-
Size32.03*124.8*32*29.6mm
-
ViscosityGood
-
UsageGrinding
-
GritB80/100
-
MatrixSteel Or At Your Request
-
AbrasivesCBN
-
Place of OriginCHINA
-
Brand NameJC
-
CertificationISO-9001
-
Model NumberCustomized
-
Minimum Order Quantity5pcs
-
PriceNegotiable
-
Packaging DetailsExport Packaging
-
Delivery Time5-8 work days
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability10000/month

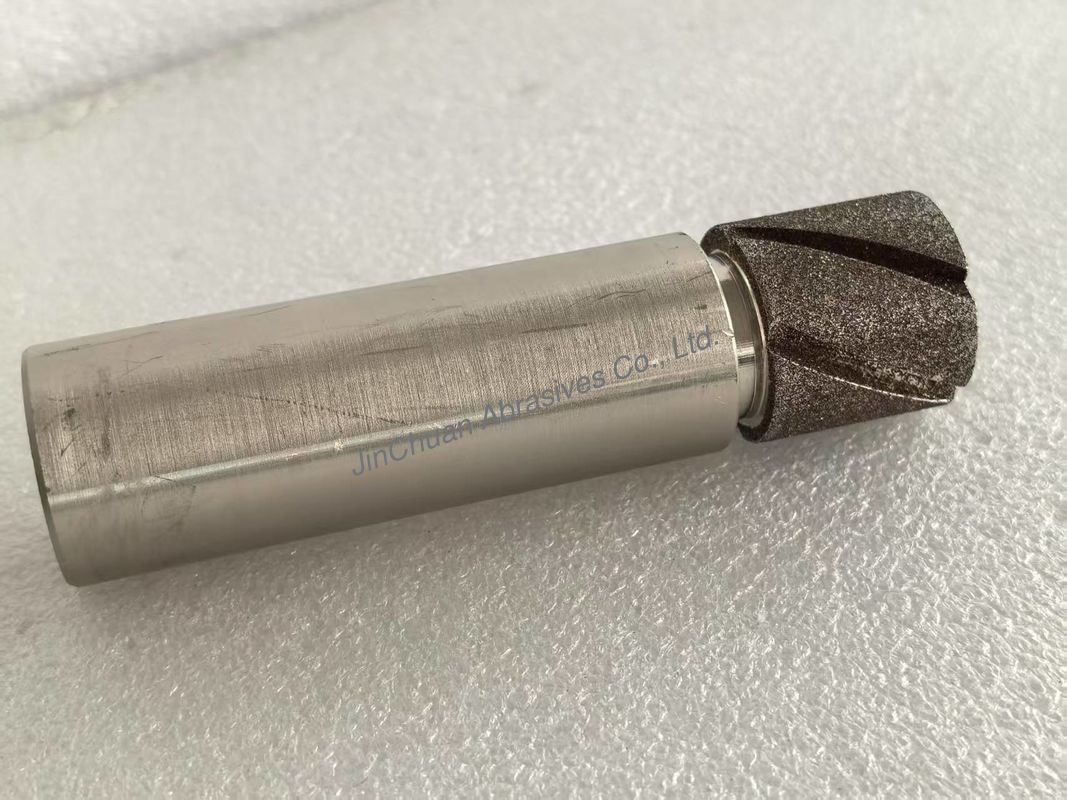

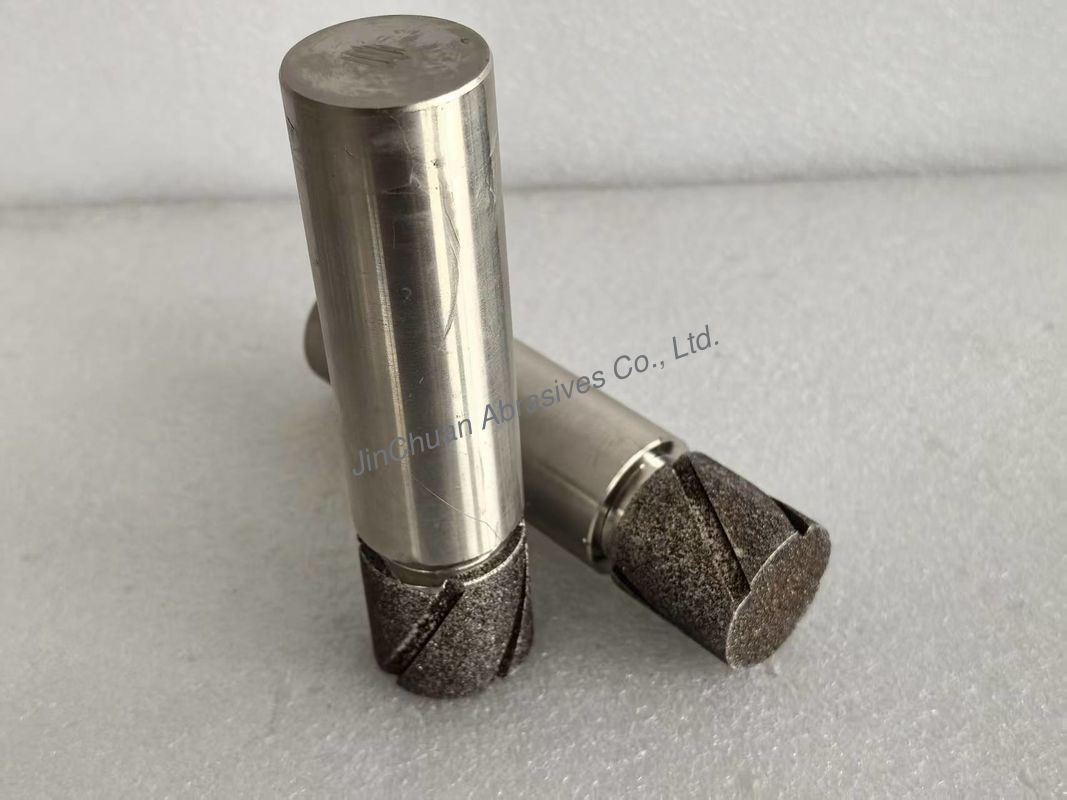

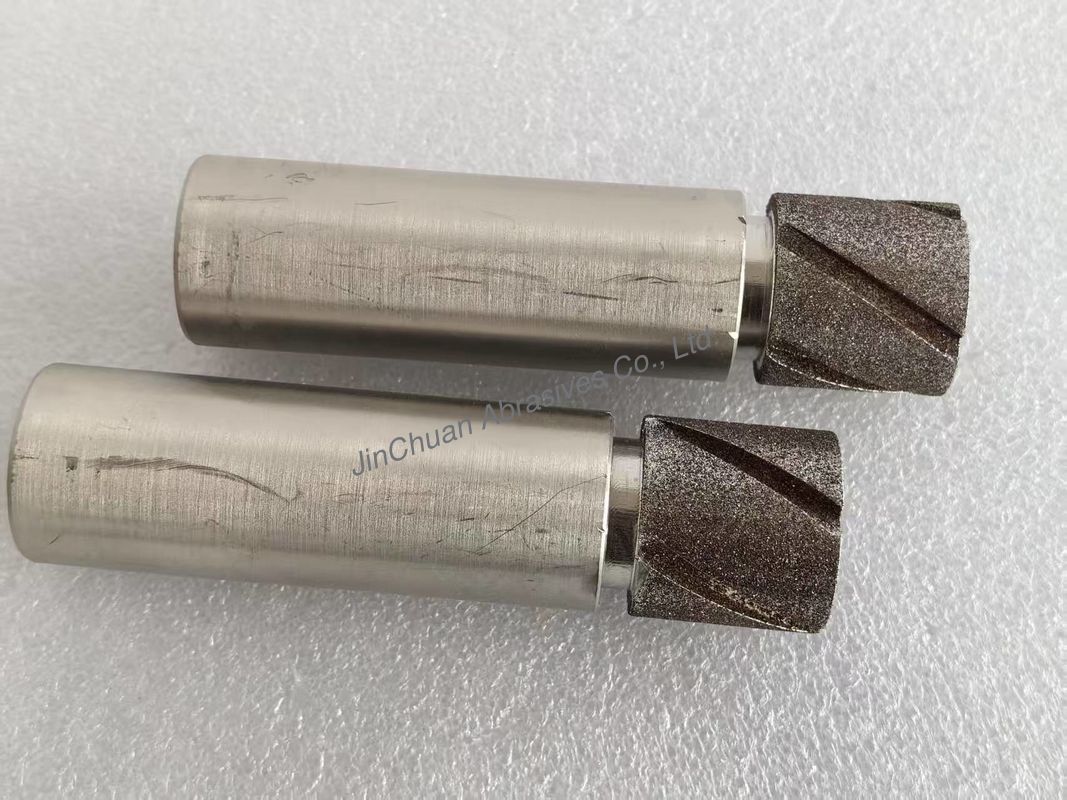

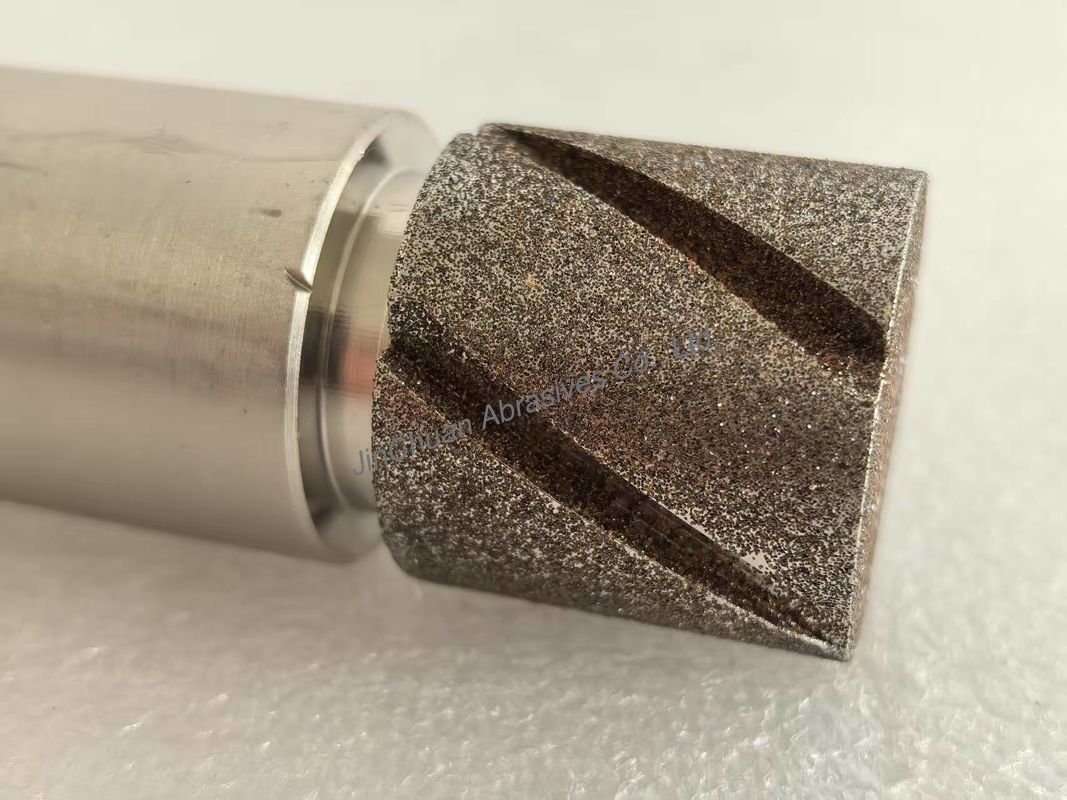

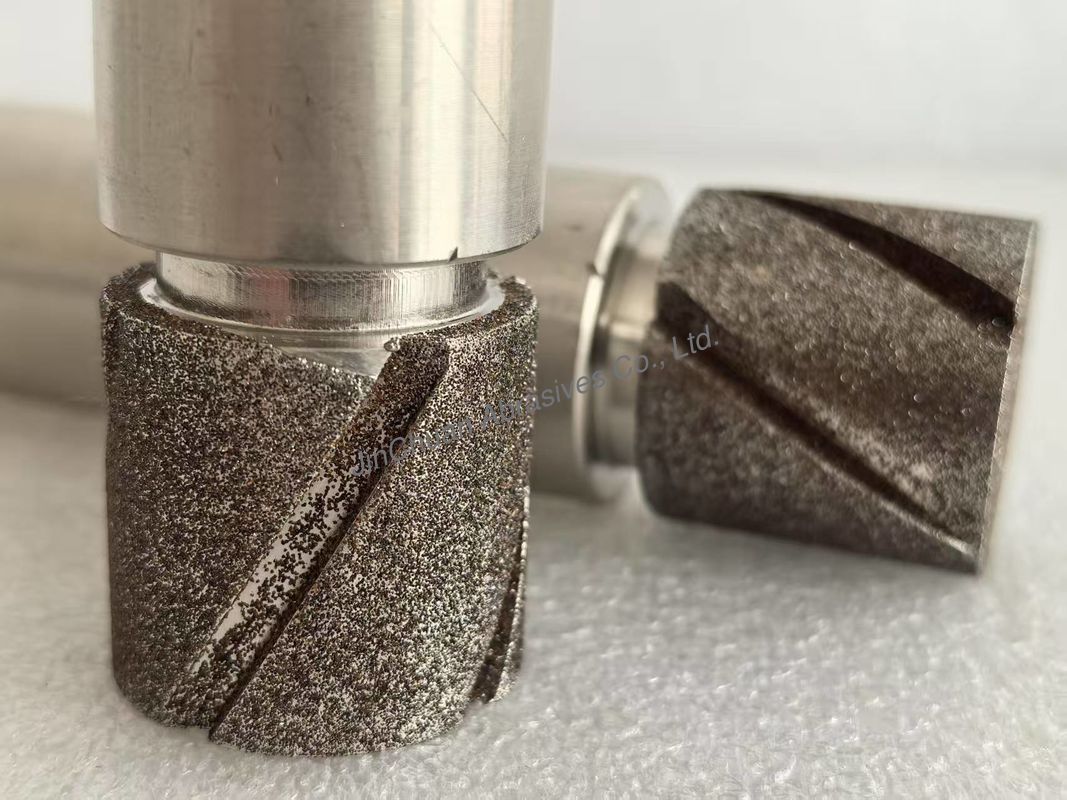

Customized CBN Grinding Head 32.03*124.8*32*29.6mm B80/100
Customized CBN Grinding Head
Description
Electroplated CBN (cubic boron nitride) grinding head is a precision grinding tool that uses electroplating process to fix CBN abrasive grains on the surface of metal substrate. It has high hardness, high wear resistance and excellent thermal stability. It is suitable for processing hard and brittle materials such as cemented carbide, ceramics, glass and high hardness steel.
Product Features
High hardness: CBN hardness is second only to diamond, suitable for processing hard materials above HRC45.
Thermal stability: High temperature resistance (up to 1400°C), not easy to react with iron metals at high temperatures (better than diamond).
Precision machining: The electroplating process can achieve high-precision abrasive arrangement, suitable for complex surfaces (such as inner holes, threads, gears, etc.).
No need for dressing: The electroplating layer directly fixes the abrasive, and no dressing is required like sintered abrasives.
Product size(mm)
| Diameter | Thickness | Abrasive depth | Abrasive width | Granularity |
| 32.03 | 124.8 | 32 | 29.6 | B80/100 |
Of course other sizes can be customized.
Application areas
Carbide processing: sharpening and polishing of tools and molds.
Aerospace: precision grinding of high-temperature alloy blades and turbine disks.
Automotive industry: efficient processing of engine camshafts and gears.
Electronic industry: cutting and grinding of ceramic substrates and sapphire glass.
