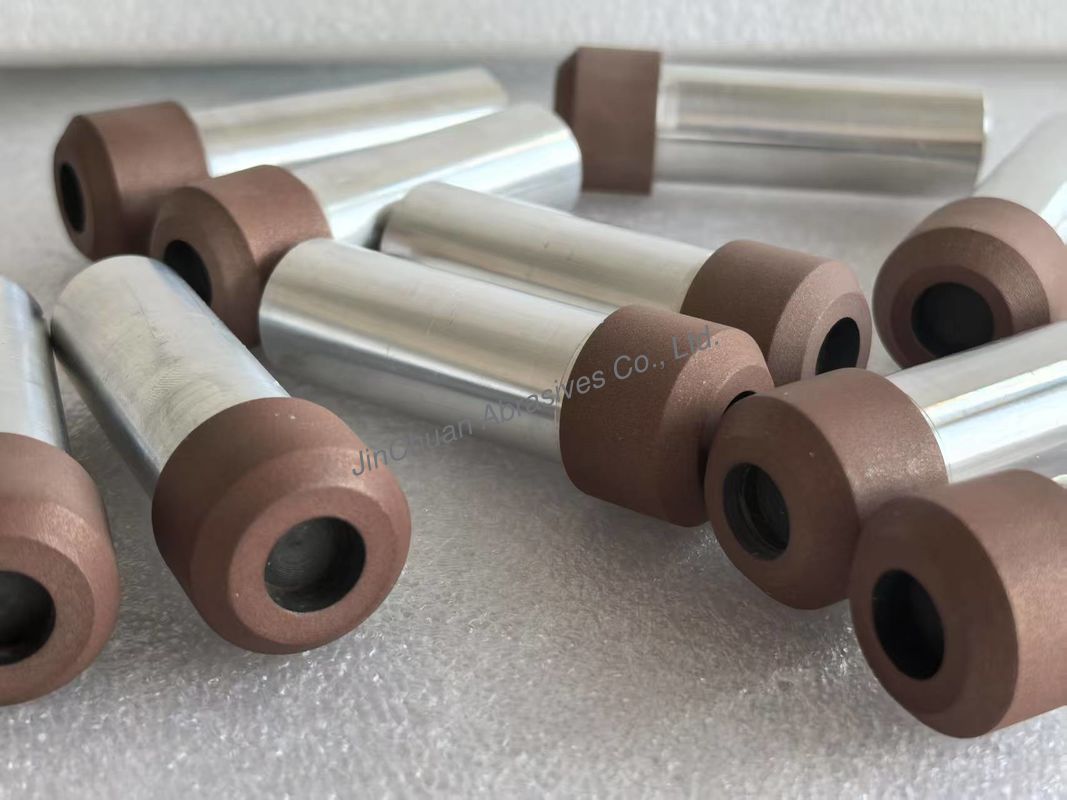

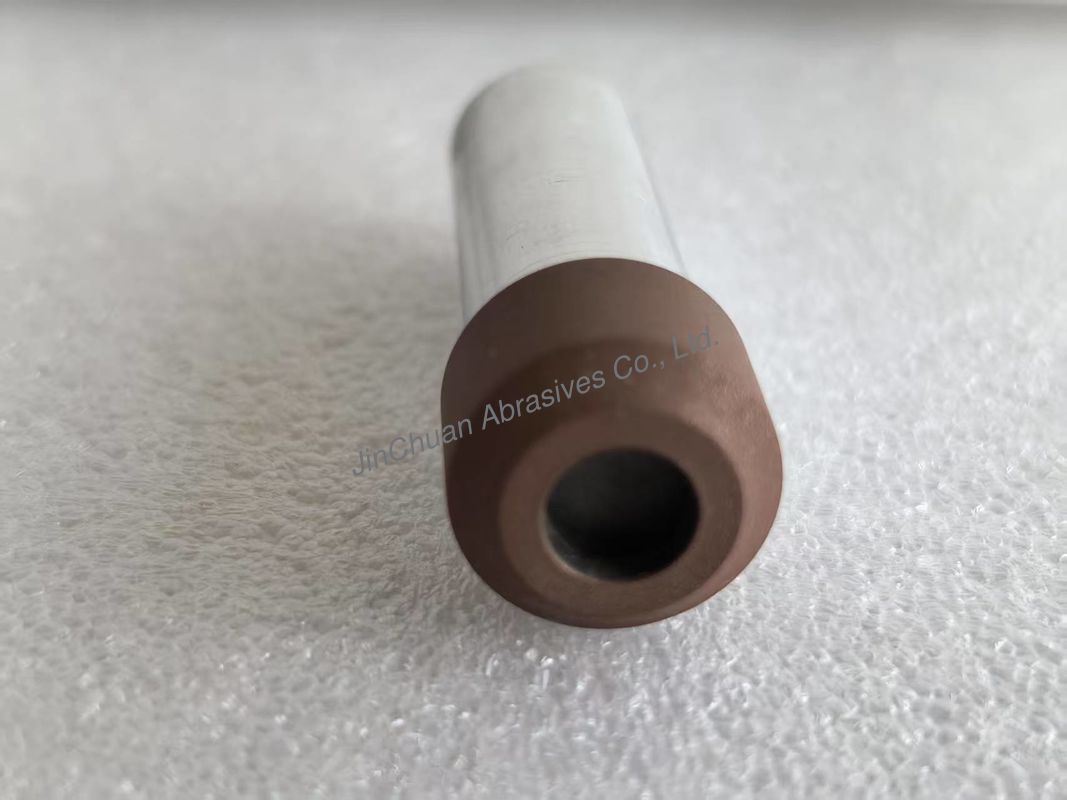

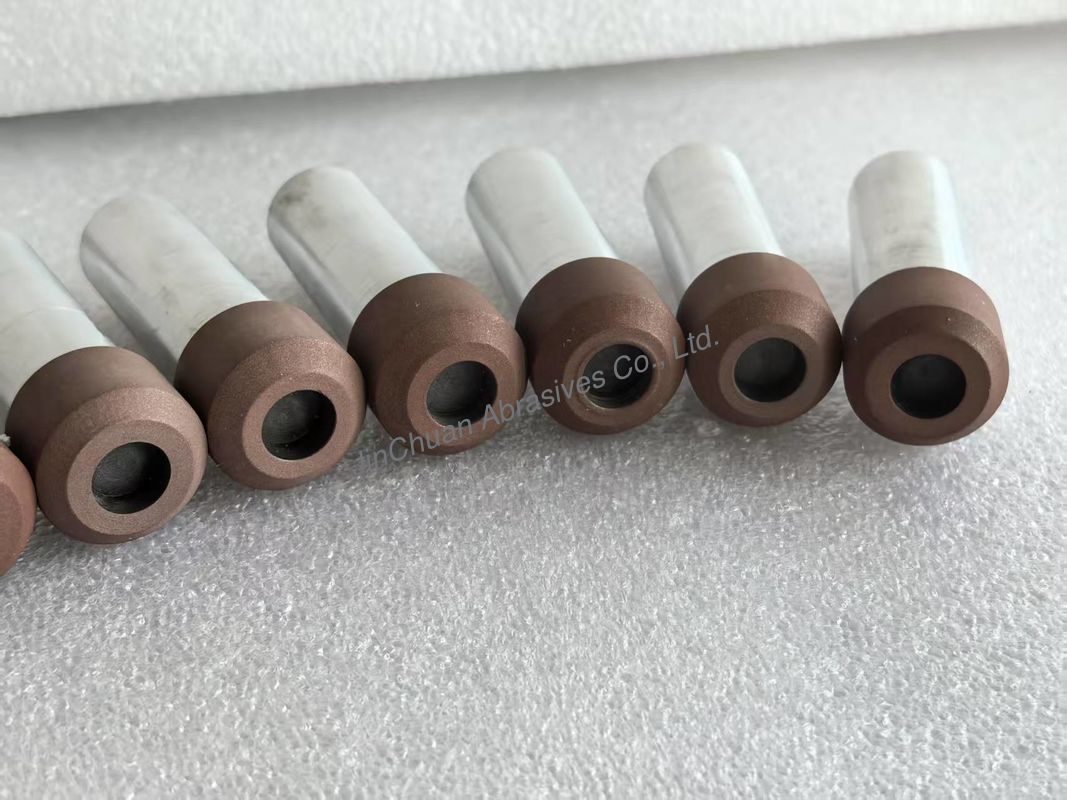

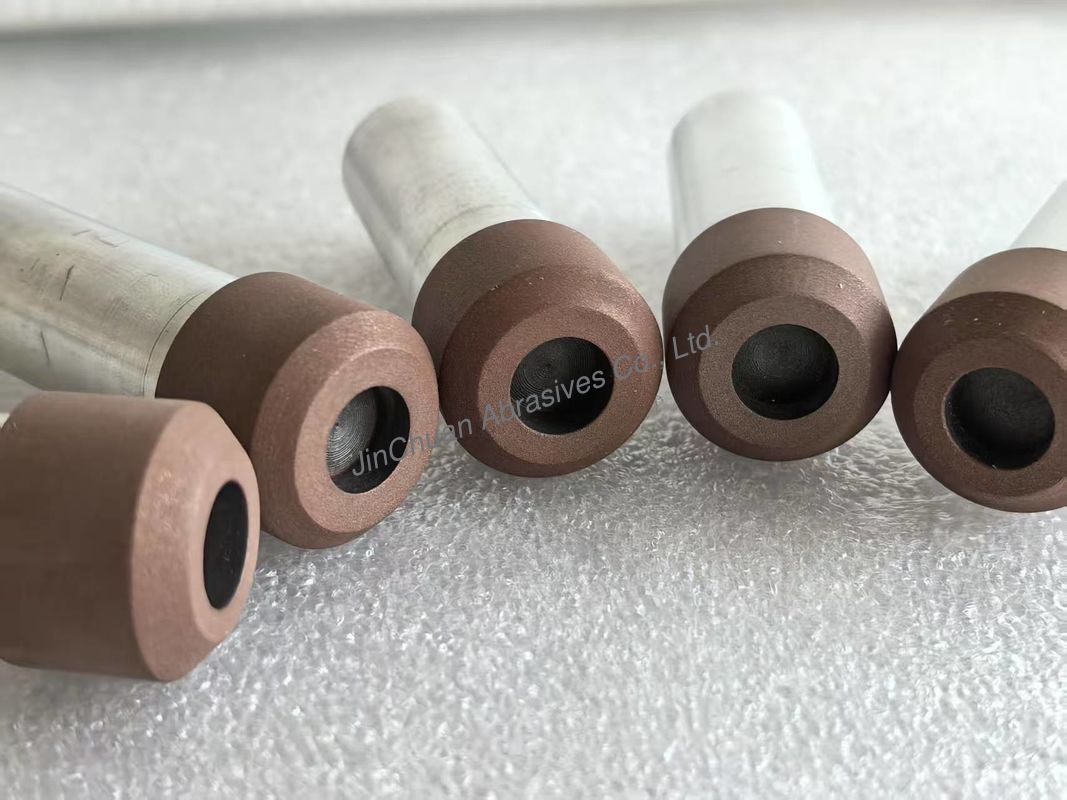

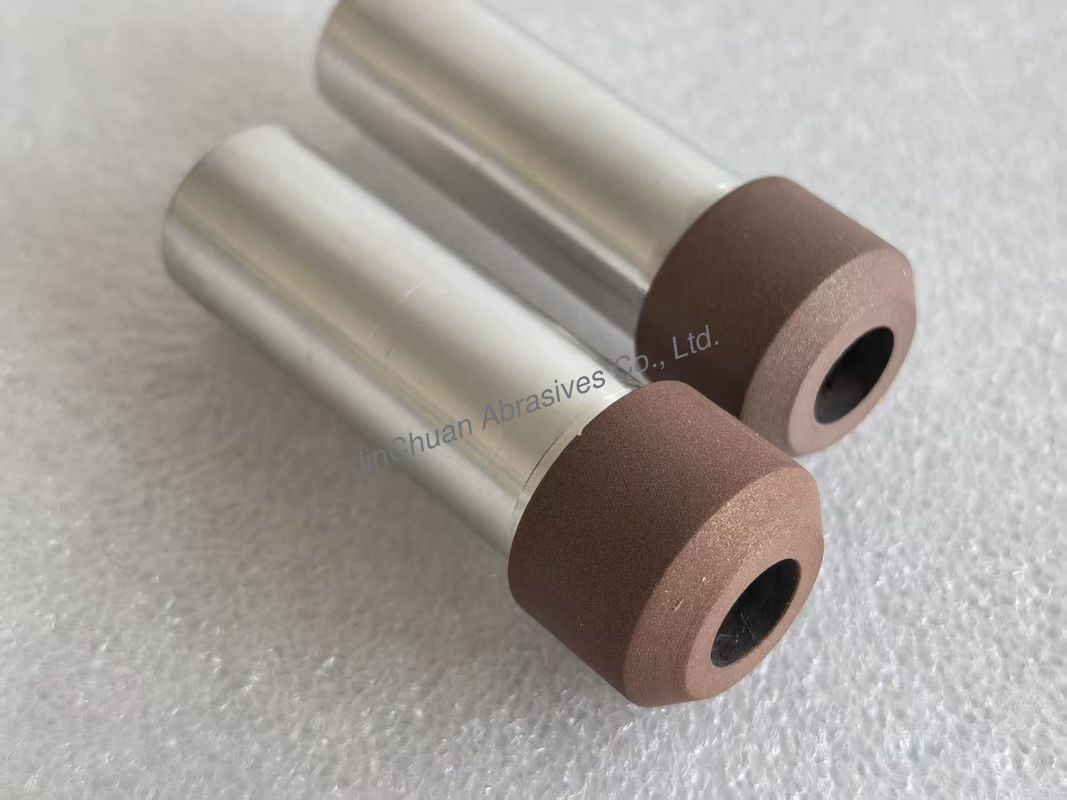

D600 # Customized Diamond Grinding Head Using For Grinding Saphire

D600 # Customized Diamond Grinding Head Using For Grinding Saphire

When using a diamond grinding head with a grit size of D600# to process sapphire, the process parameters must be strictly controlled to avoid material cracking or excessive wear of the grinding head. The following are key parameters and operating recommendations:

 Grinding head characteristics:

1,Produce as customer require
2,High working efficiency
3,Long working life
4,Top quality
5,Eco-friendly package

Key Parameters:

Speed ​​(RPM) Recommended range: 3000~8000 RPM(Small diameter takes high value, large diameter takes low value)

Feed speed: 0.01~0.1 mm/s (lower value for fine grinding)

Coolant must be used: Deionized water or special cooling oil, flow rate ≥5 L/min.

suggestion:

The diamond grinding head with a particle size of D600# should be based on the core principles of low stress, high cooling, and progressive cutting, reasonably matching the speed and feed, and taking into account both efficiency and surface quality. It is recommended to optimize the parameters through trial grinding and regularly maintain the grinding head status.
