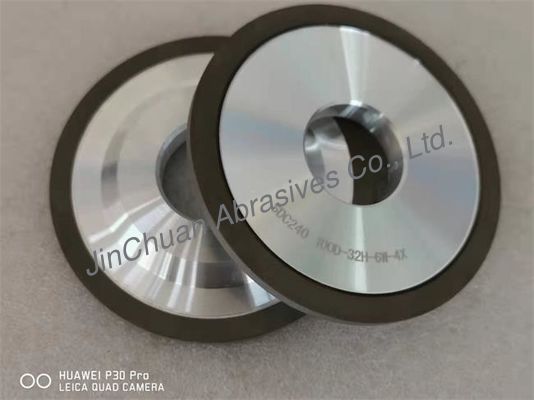

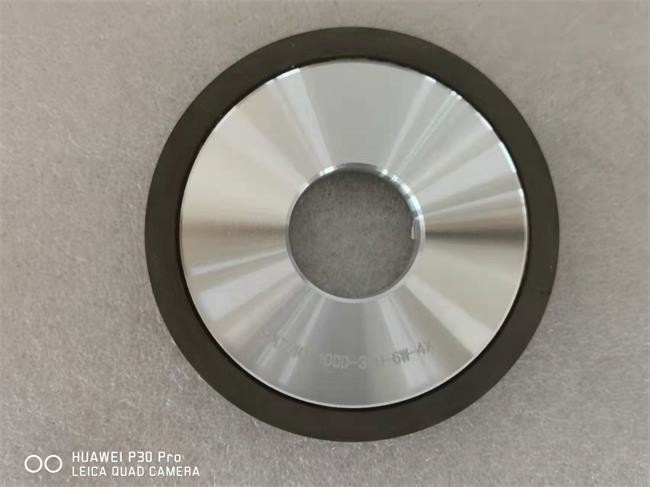

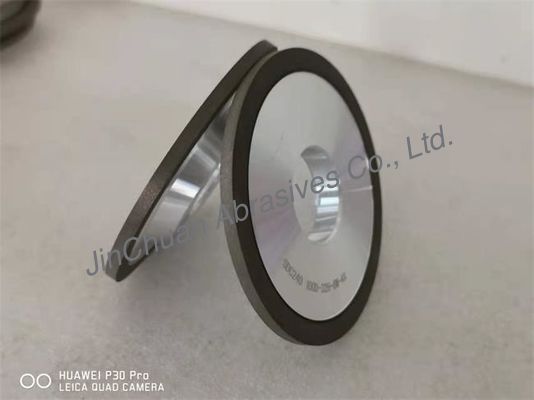

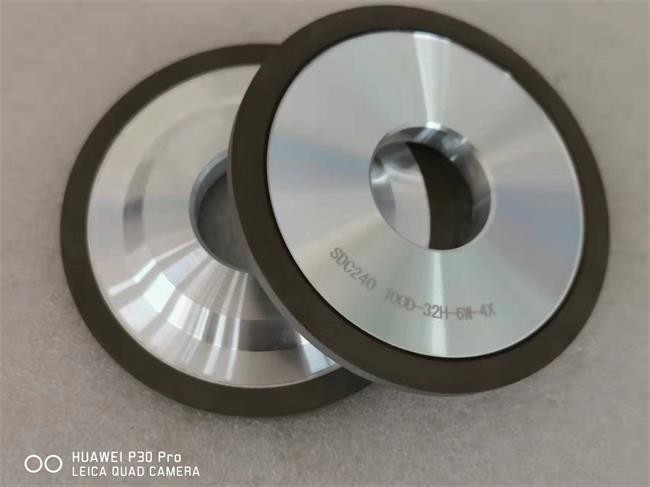

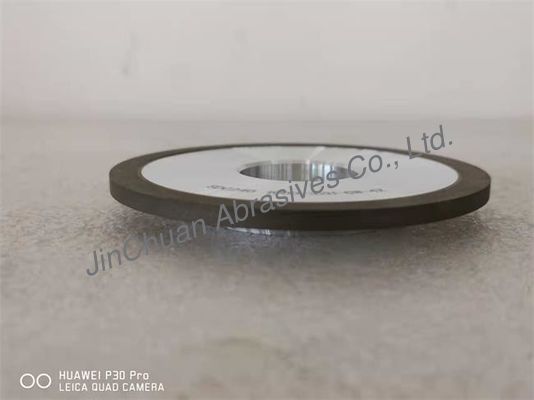

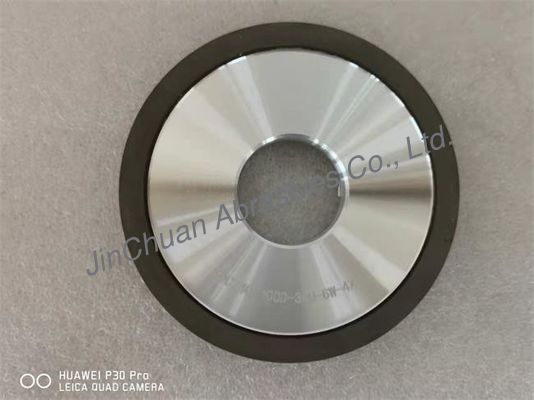

Diameter 100mm Resin Bond Grinding Wheel 3A1 D240# 100%

Resin Diamond Grinding Wheels 3A1 D240# 100% Diameter 100mm

Description  :

The resin diamond grinding wheel is  composed of diamond layer and aluminum matrix. The diamond layer contains mixed powder of diamond powder, resin powder and metal powder, as well as resin binder pressed filler. When the aluminum substrates are combined, the outer circle, inner circle, and plane of the hard alloy and other workpieces are roughed, semi-finished, and finely ground with diamond grinding wheels during high-speed operation.

Specification:

100*11*32*64 mm,D240,100%

Feature:
·Selection of high-quality artificial diamond powder and imported raw materials.
·Good self-sharpness, high grinding efficiency and long working life.
·The grinding wheel has a certain elasticity, which is conducive to improving the roughness of the surface of the working layer.
·Shorter production cycle time; higher removal rate, easily to make complex wheels.

Drawing
