Electroplated Diamond Wire Saw Used For Cutting Steel, Iron

Electroplated Diamond Wire Saw Used For Cutting Steel, Iron

  • Material
    Steel
  • Grinding Material
    Diamond
  • Bond
    Electroplated
  • Package
    Carton
  • Application
    Cutting
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO9001:2015,ISOCE16949
  • Model Number
    as required
  • Minimum Order Quantity
    20pieces
  • Packaging Details
    Carton

Electroplated Diamond Wire Saw Used For Cutting Steel, Iron

Specifications

Type: Diamond Wire Saw
Application: Cutting,Granite Quarrying
Material: Diamond,steel,Diamond Wire Saw,rubber
Usage: Granite Quarrying,Rock Cutting,Stone Carving,diamond Wire Saw
Product Name: 11.5mm Fast Cutting Rope Quarry Diamond Wire Saw,Small Diameter Diamond Wire Saw For Stone Cutting,Diamond Saw Ropes
Advantage: High Efficiency Long Life Time,High Working Efficiency,high Quality,Fast Cutting,15 Years Experience
Beads Type: Sintered
Diameter: 11.5mm
Business Type: Manufacturer,Manufacturer And Trading
High Light:

10m2/h Granite Diamond Wire Saw

,

Sintered Beads Diamond Wire Saw

,

11.5mm Granite Quarrying Tools

Product Description

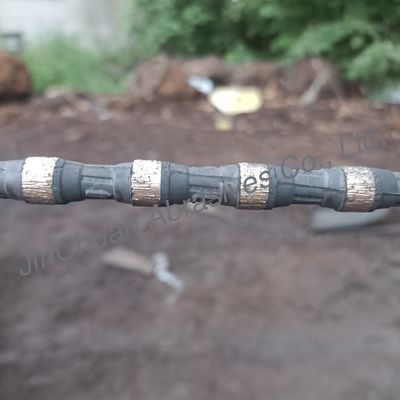

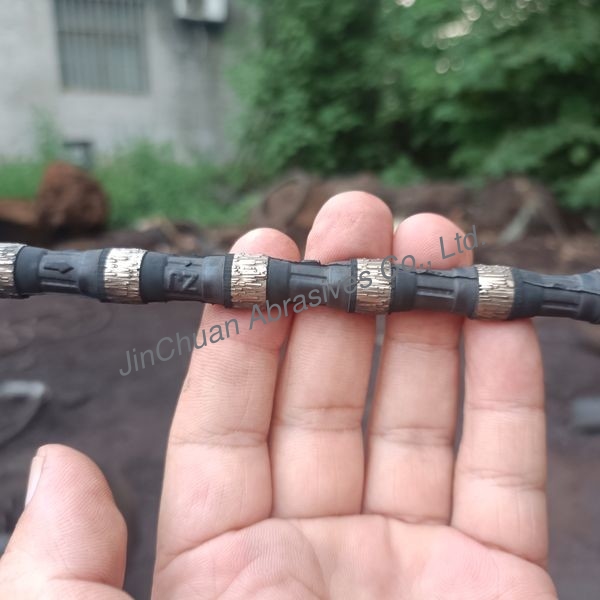

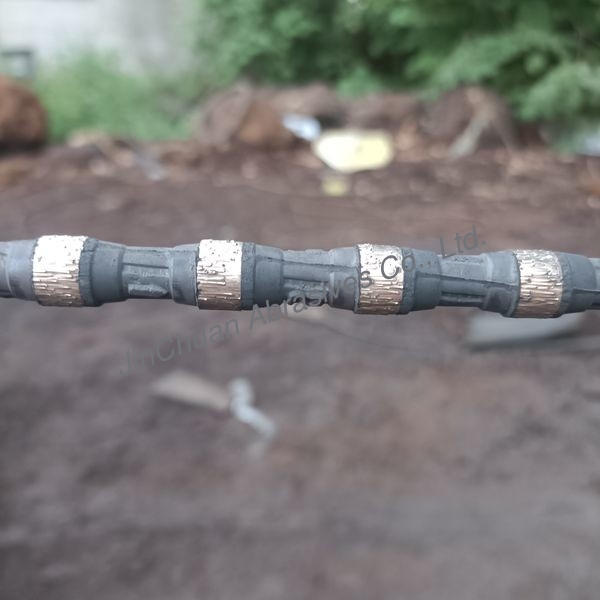

Diamond wire saw for granite quarring

The characteristics:

1: The diamond wire quarrying technique can highly improve the quarrying efficiency, reduce the waste of mining resource,
2: It can exploit large dimension blocks. At the same time, it can be operated safely and it is good for environment protection.
3: Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
4. The rubber and cable sticking together tightly makes good bonding, and this can be more strikes during the work.
5. The vulcanised rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry.
6. Strong flexibility can reduce the cut-in-one-side problem, and protect cable well when it used for small curvature radius(beginning and end of quarry cuts).

Specification Reinforcement Beads number Cutting material Line speed Cutting speed Wire life
Φ11.5mm Rubber 40/m Hard granite 18-22m/s 7-10 m2/h 8-15m2/m
Φ11.5mm Rubber 40/m Middle hard granite 22-25m/s 10-15 m2/h 15-25m2/m
Φ11.5mm Rubber 40/m Soft granite 25-30m/s 15-20 m2/h 25-40m2/m
