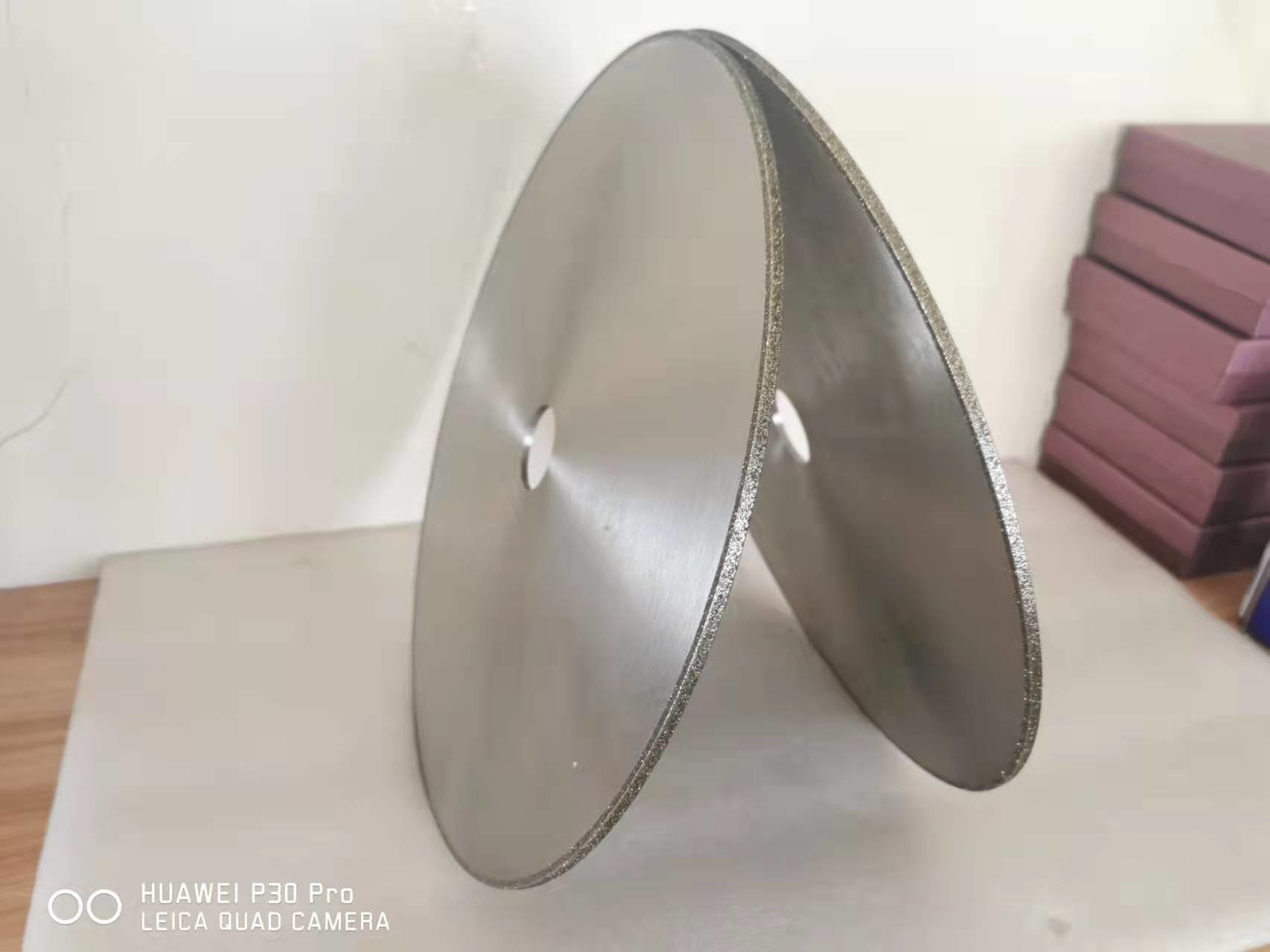

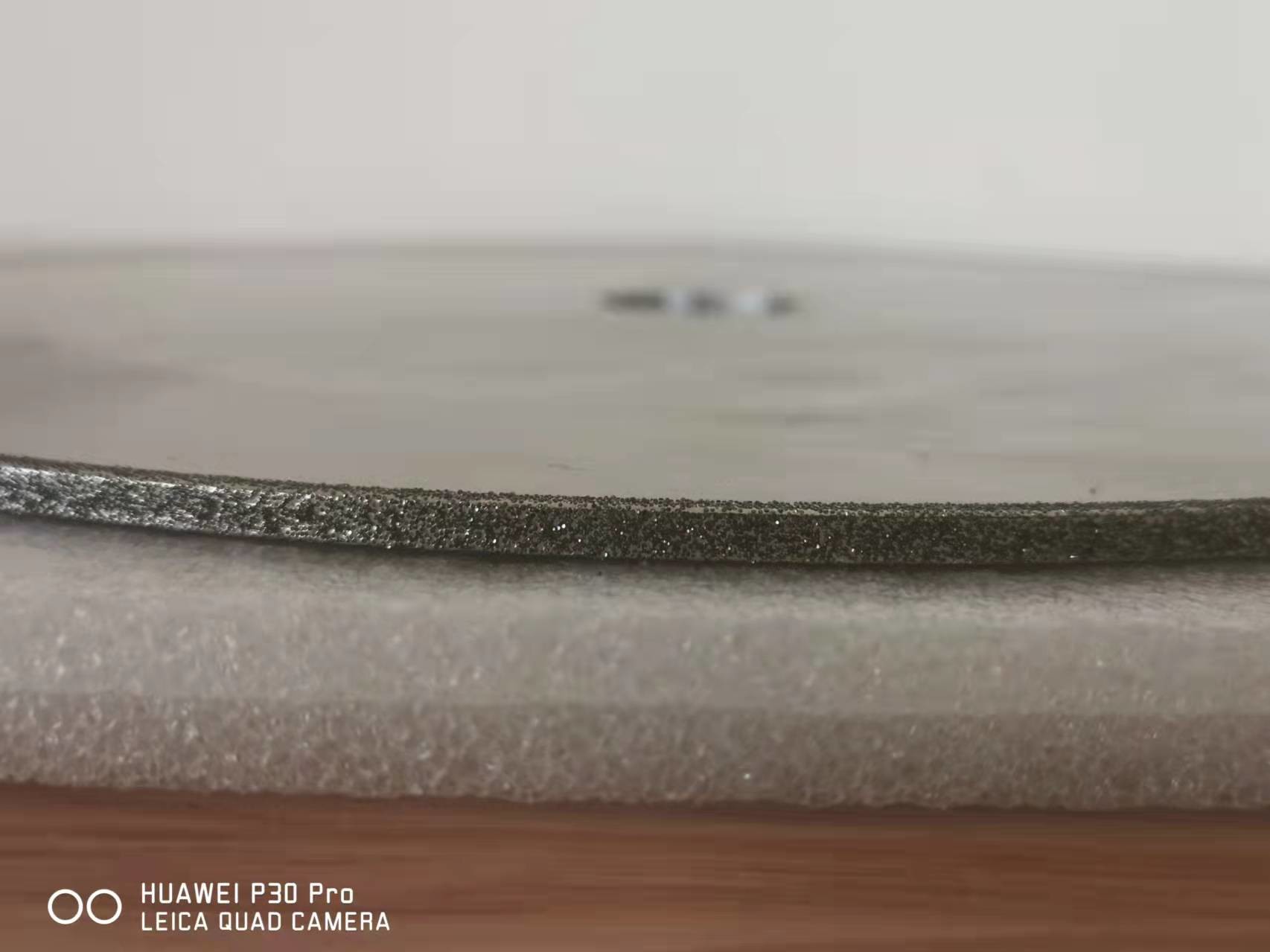

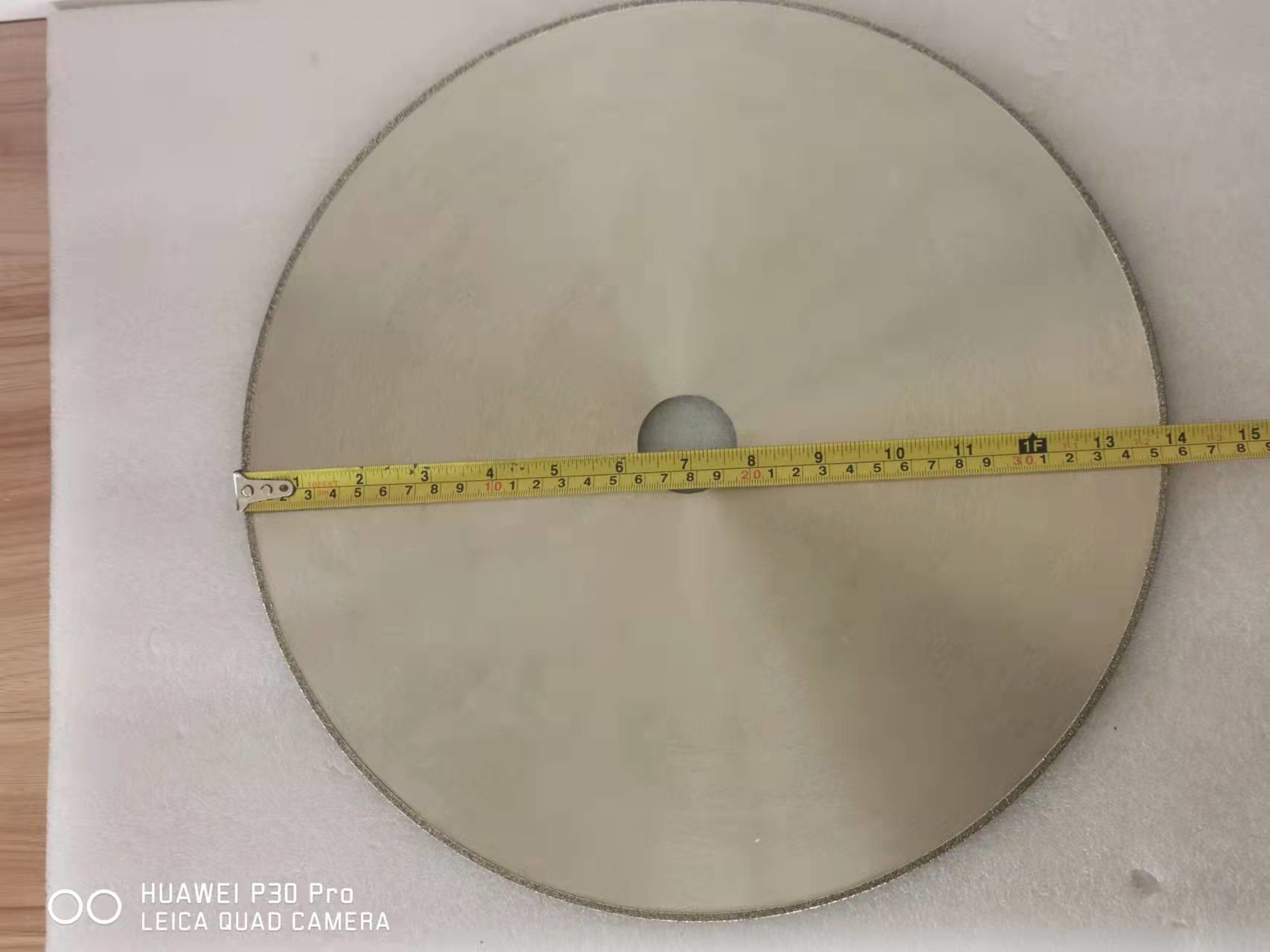

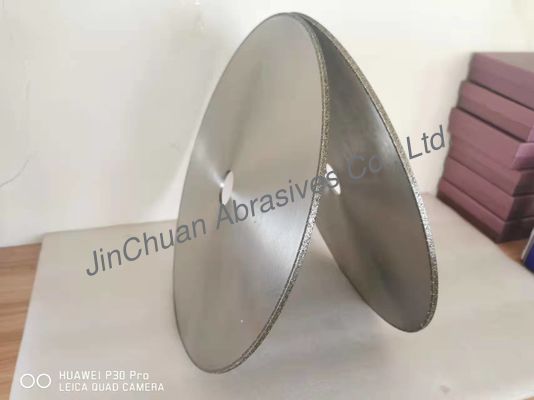

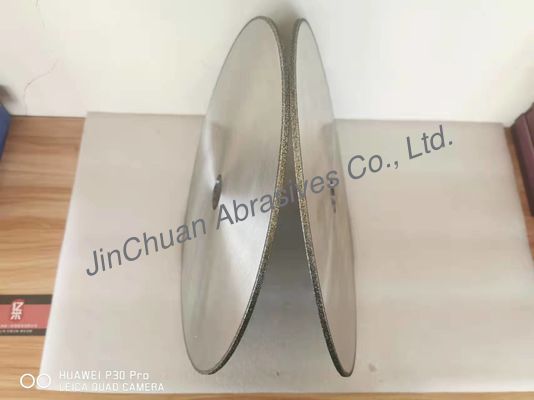

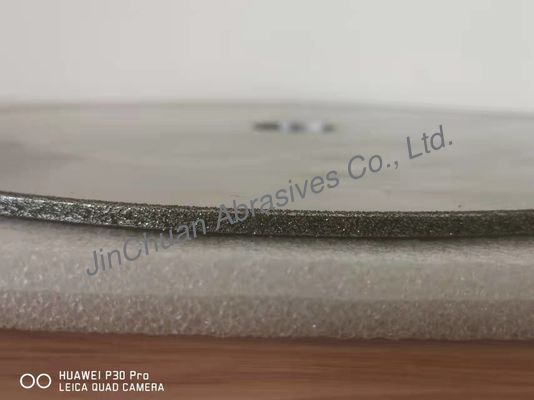

Gray Electroplated Diamond Grinding Wheels With Steel Body Cutting Blade D40/45

Gray Electroplated Diamond Grinding Wheels With Steel Body Cutting Blade D40/45

  • High Light

    D40 Electroplated Diamond Grinding Wheels

    ,

    D45 Electroplated Diamond Grinding Wheels

    ,

    D40 electroplated diamond grinding disc

  • Size
    Requiered
  • Shape
    1A1R
  • Abrasive
    Diamond
  • Bonding Agent
    Electroplated
  • Grit
    D40/45
  • Color
    Silver
  • Material
    Steel
  • Place of Origin
    China
  • Brand Name
    JC
  • Certification
    ISO9001:2015,ISOCE16949
  • Model Number
    1A1

Gray Electroplated Diamond Grinding Wheels With Steel Body Cutting Blade D40/45

lectroplated diamond saw blade is electrochemically made diamond saw blade.The working layer of the saw blade contains diamond abrasive particles, and the diamond abrasive is bonded to the matrix by the metal binder.The thickness of the metal bond was first deposited to 20% of the height of the diamond abrasive (upper sand), and then the diamond abrasive was bonded (thickened) with the metal bond to about 2/3 of the height of the abrasive.

The highly effective range of Electroplated Diamond Saw Blade offered by us are eagerly sought after by clients lasting services, resistance to corrosive effects and dimensional accuracy. This variety of blades are extremely effective in cutting stones, marbles, tiles, concrete etc. We offer the range at pocket friendly prices. We also customization facility.

We will work with you to determine your needs, and develop the right bond formulation, concentration, and grit sizes.

Gray Electroplated Diamond Grinding Wheels With Steel Body Cutting Blade D40/45 0Gray Electroplated Diamond Grinding Wheels With Steel Body Cutting Blade D40/45 1Gray Electroplated Diamond Grinding Wheels With Steel Body Cutting Blade D40/45 2
