Cup Shaped Resin Bonded Diamond Grinding Wheels Abrasive Disc 175 Grit

Basic Information
Place of Origin: CHINA
Brand Name: JINCHUAN
Certification: ISO
Model Number: 9A3
Minimum Order Quantity: 5pce
Price: negotiable
Packaging Details: Wooden box
Supply Ability: 1000/month
Type: Abrasive Disc Shape: Cup-Shaped
Color: Brown Product Name: Diamond Resin Wheel
Grit: 175 Center Material: Rubber Plastic
High Light:

resinoid grinding wheels

,

carbide sharpening wheel

9A3 175D*25T/5W/5X/10E/20H MMD20μR , Resin Bond Grinding Wheel,Brown, Sharpening saw blade



Product Name 9A3
Product specifications 175D*25T/5W/5X/10E/20H MMD20μR
Product Usage Sharpening saw blade



Resin bond synthetic diamond flat grinding wheel is mainly used for surface grinding and external grinding of cemented carbide measuring tools, tungsten steel, high speed steel, alloy steel, glass, gemstone, magnetic material, ceramic, mold, etc. It can also be used as cut-in grinding.



And shape grinding due to the characteristics of diamond abrasives (high hardness, high compressive strength, good wear resistance), it is an ideal tool for grinding hard and brittle materials and hard alloys in grinding, not only efficiency High precision, high roughness, low abrasive consumption, long service life and improved working conditions.



Therefore, it is widely used in low-iron content metal and non-metal hard and brittle materials, such as cemented carbide, high-aluminum porcelain, optical glass, agate gemstone, semiconductor material, stone, etc., which are difficult to process with ordinary abrasive tools. Grinding and polishing of the grinding process for cylindrical grinding of cemented carbide.

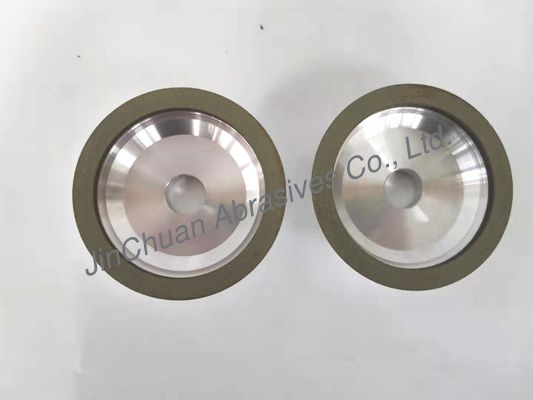

Cup Shaped Resin Bonded Diamond Grinding Wheels Abrasive Disc 175 Grit 0





Resin bond diamond grinding wheel


Introduction:



Parallel grinding wheel: mainly used for cylindrical grinding and edge machining of cemented carbide

The fat-bonding diamond grinding wheel has a good polishing effect. The grinding wheel is sharp and difficult to block when grinding. The specific features are as follows:


1. The grinding efficiency is high, and the grinding wheel consumption is relatively slow;


2. Self-sharpness, low heat generation during grinding, not easy to block, reducing the phenomenon of workpiece burns during grinding;


3. The grinding wheel has certain elasticity, which is beneficial to improve the roughness of the surface of the workpiece, and is mainly used for fine grinding, semi-finishing, knife grinding and polishing;


4. Resin bond diamond grinding wheel is low temperature curing, the production cycle is short, the equipment and supply process are relatively simple; because the resin has fluidity, it is easy to form a grinding wheel with complex surface.

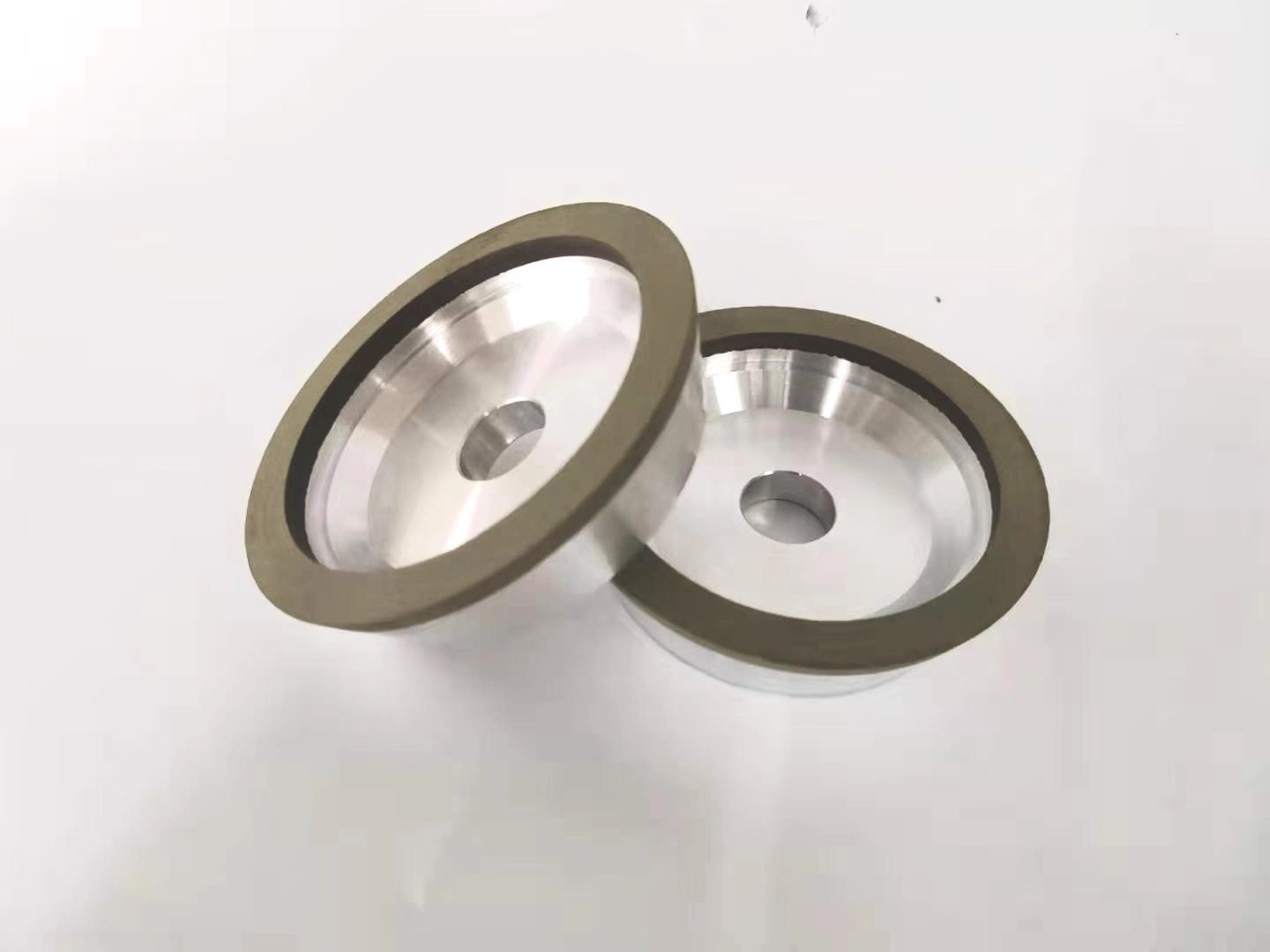

Cup Shaped Resin Bonded Diamond Grinding Wheels Abrasive Disc 175 Grit 1



Characteristics:



1.The resin binder is an organic binder, and the binder has a high strength

2.Have a certain flexibility

3.Low heat resistance

4.Short process cycle
