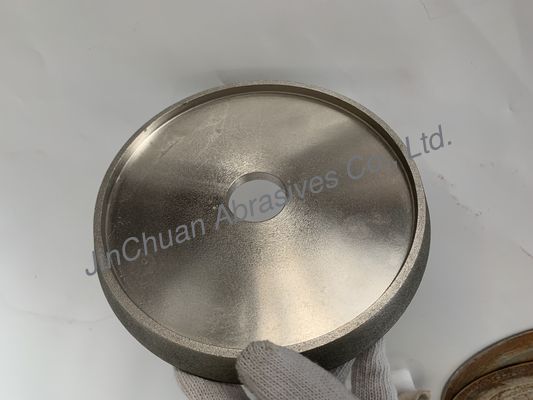

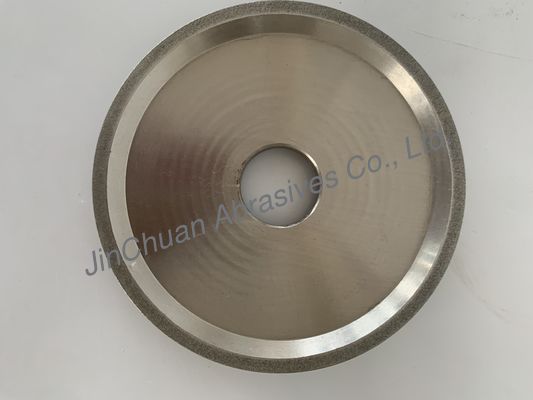

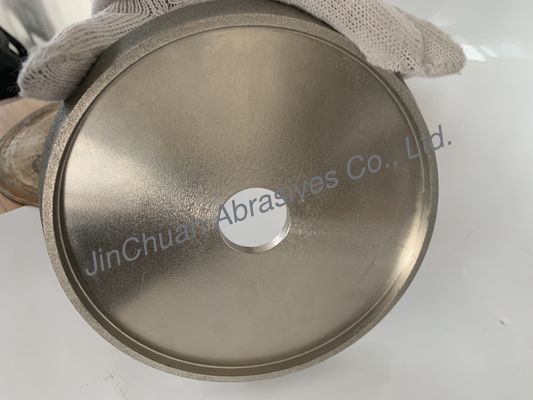

Parallel diamond aluminum alloy grinding wheel
Detailed Product Description:
Diamond aluminum grinding wheel has high hardness, high strength and strong grinding ability. It is mainly used for grinding high and hard alloys, non-metallic materials, cutting hard and brittle hard alloys, non-metallic minerals and so on. Such as cemented carbide, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone and so on.
| Binding agent |
Grit |
Shape |
| Aluminum grinding wheel |
35~2000 |
Parallel grinding wheel |
Product feature:
Electroplated diamond flat grinding wheel is mainly used for grinding and cylindrical grinding of hard alloy measuring tools, tungsten steel, high speed steel, alloy steel, glass, gemstone, jade jade amber wax, magnetic material, ceramic, mold, etc. Plunge grinding and forming grinding are ideal tools for grinding hard and brittle materials and hard alloys due to their characteristics (high hardness, high compressive strength and good wear resistance). They are not only efficient but also highly accurate. Moreover, the roughness is good, the abrasives are used less, the service life is long, and the working conditions can be improved. Therefore, it is widely used in low-iron content metal and non-metal hard and brittle materials, such as cemented carbide, high-aluminum porcelain, optical glass, agate gemstone, semiconductor material, stone, etc., which are difficult to process with ordinary abrasive tools. Grinding and polishing of the grinding process for cylindrical grinding of cemented carbide.
Advantage:
(1)The grinding efficiency is high, and the grinding wheel consumption is relatively slow;
(2)The self-sharpness is good, the heat generation during grinding is small, it is not easy to block, and the phenomenon of work burns during grinding is reduced
(3)The grinding wheel has certain elasticity, It is beneficial to improve the roughness of the surface of the workpiece, mainly used in the processes of fine grinding, semi-finishing, knife grinding and polishing.
(4)The diamond aluminum grinding wheel is low temperature curing, the production cycle is short, and the equipment and supply process are relatively simple; because the aluminum body has plasticity, it is easy to form a grinding wheel with complicated surface.
(5)Aluminum parallel wheels are light in weight, low in freight, easy to transport, and low in cost.
Use:
Parallel grinding wheel: mainly used for cylindrical grinding and edge machining of cemented carbide
Parallel arc grinding wheel: mainly used for forming grinding of hard alloy and forming grinding of circular arc surface
Double-sided concave grinding wheel: mainly used for grinding measuring tools and coreless grinding machines
Double beveled grinding wheel: mainly used for forming grinding of hard alloy gear hobs and thread cutters
Bowl-shaped grinding wheel: mainly used for sharpening of carbide tools, high-speed steel tools, and also for milling
classification:
Diamond aluminum grinding wheel (resin knife grinding wheel) can be selected according to the product model (parallel grinding wheel, parallel arc grinding wheel, double-sided concave grinding wheel, double oblique grinding wheel, bowl type grinding wheel), etc.
Please contact us if you need it. Our product quality assurance, price concessions, waiting for your contact at any time!
