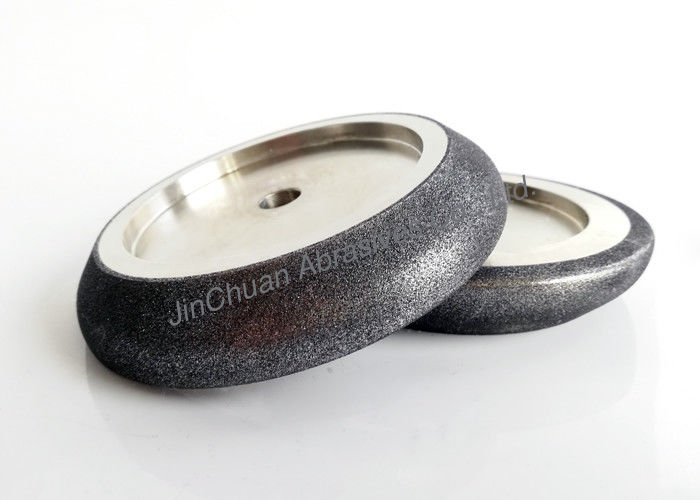

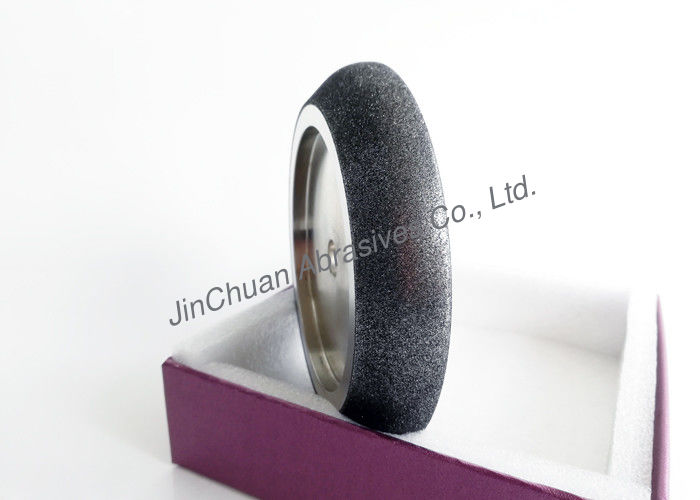

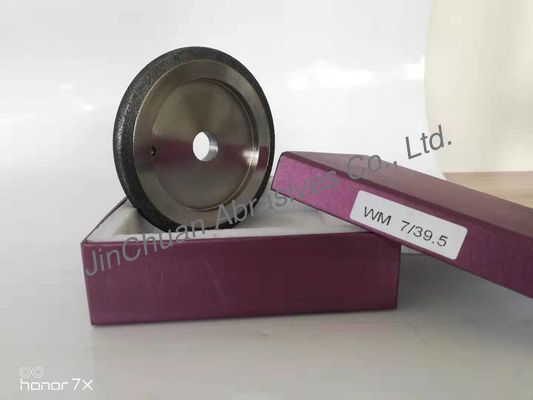

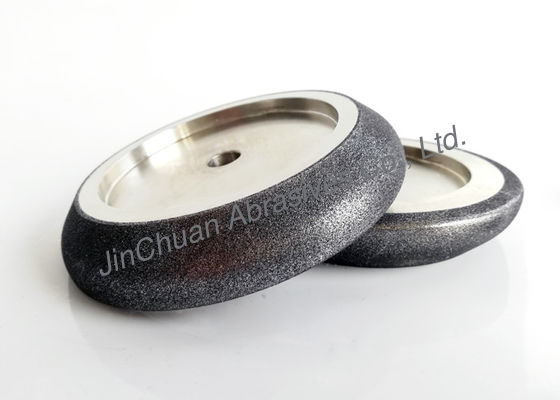

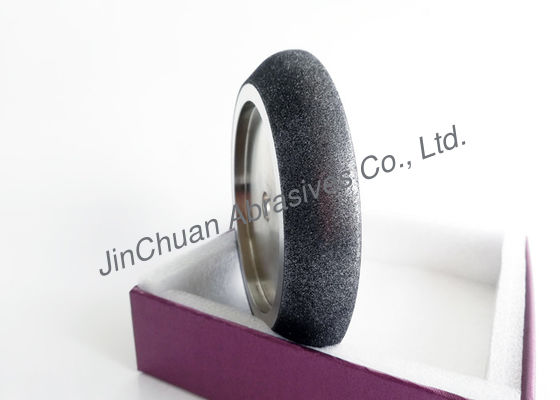

CBN Sharpening Wheels For Wood Band sawmill blades 7/39.5 with long working life and good sharpening surface

Basic Information
Place of Origin: China
Brand Name: JC
Certification: ISO9001:2015&ISOCE16949
Model Number: wood mizer profile 7/39.5
Minimum Order Quantity: 5Pcs
Price: Negotiable

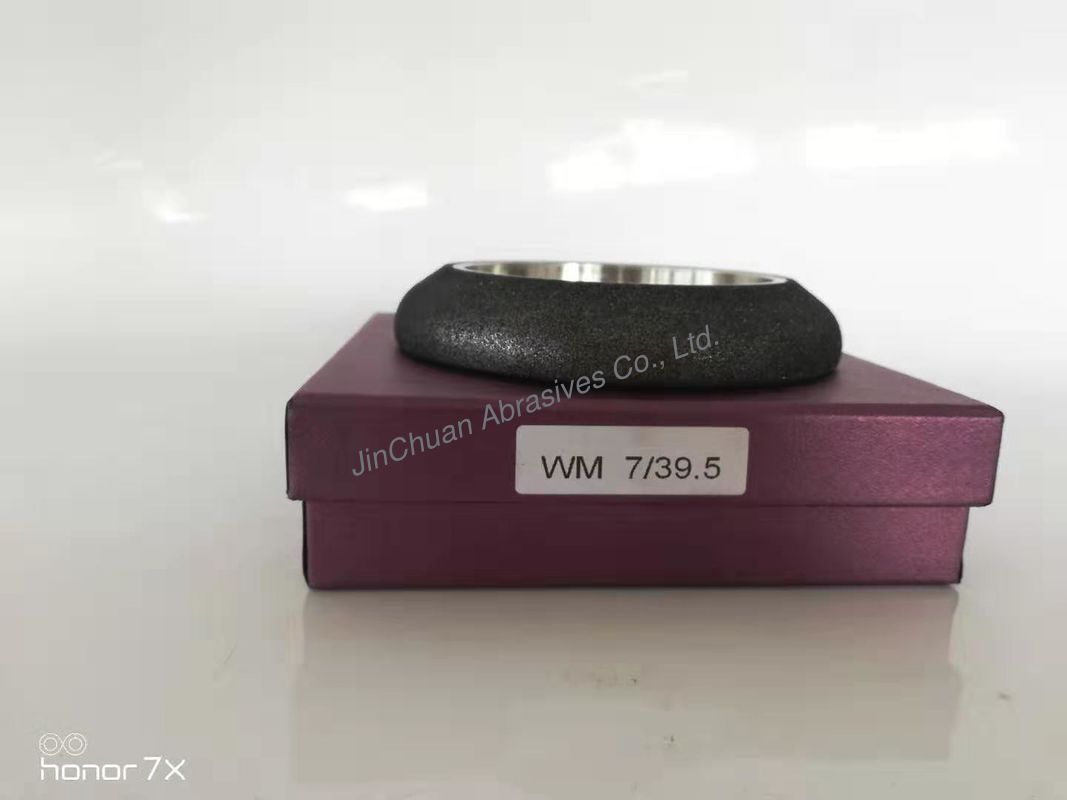

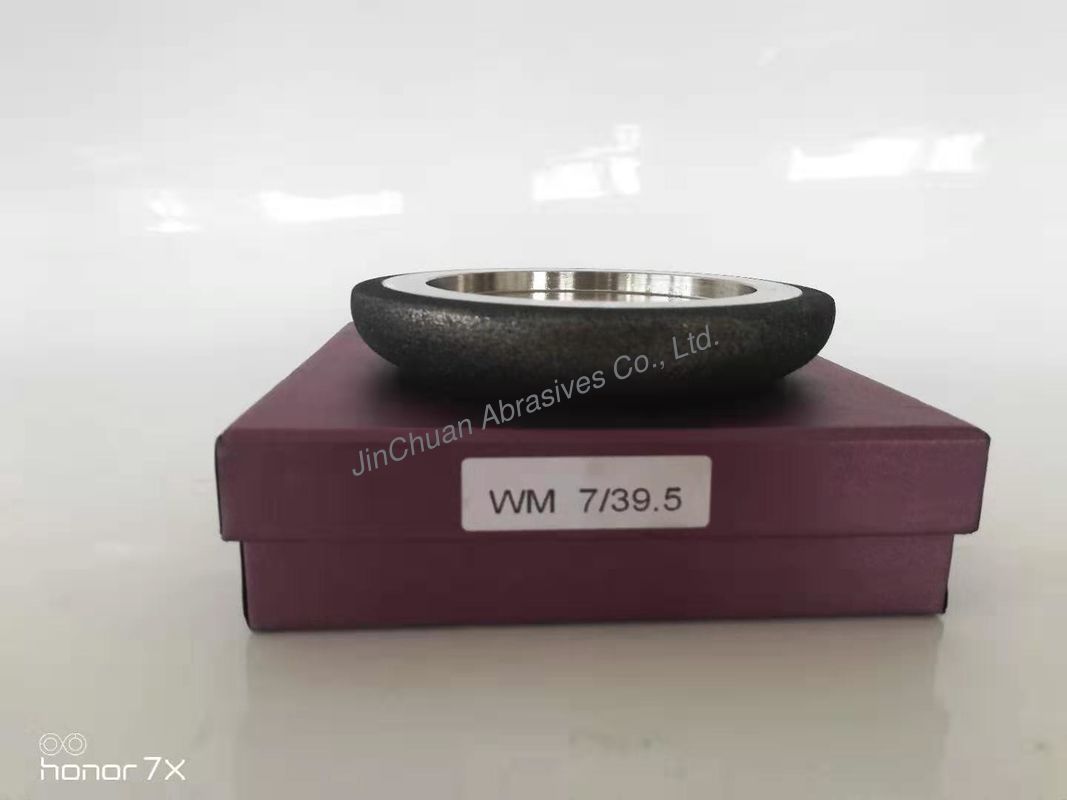

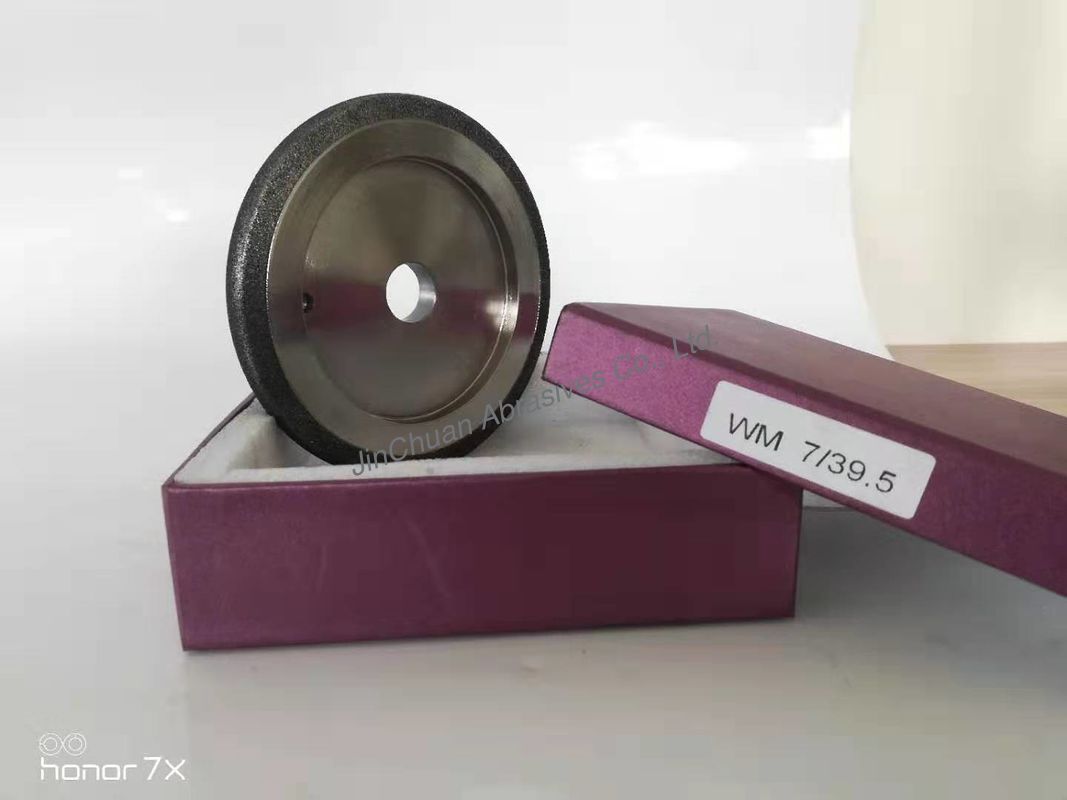

Packaging Details: Purple color box with carton box
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now

CBN sharpening wheels for wood band saw bitch sharpening same profile according to customer

requirement



Description





Mostly used CBN wheels are for band saw of following producers:



WM Profiles, Mill, Simonds, Dakin-Flathers Ripper 37(22mm,19mm), Lenox, Lenox Woodmaster C,

Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others



Different wheel profiles for all kind of wood and seasons are available

* 10/30 - mostly used universal grinding wheel profile

* 9/29 - perfectly prepares band saws for winter time cutting, or cutting hard Wood

* 4/32 - wheel profile which can prepare band saws for very frozen and very hard wood cutting

* 7/34 the CBN wheels profile is recommended for hardwood

* 13/29 - wheel profile which prepares band saws for soft wood cutting





Specification

CBN Sharpening Wheels For Wood Band sawmill blades  7/39.5 with long working life and good sharpening surface



Outside diameter Inside diameter Thickness Angle Mesh size
5" 12.7 22.23 7/39.5 B151









And also we can make any other profile grinding wheels according to u band saw bitch drawing with size to show us the bitch profile, also confirm the OD, ID. mesh size will be available for our production.



In the past, large band saws for stationary mills were sharpened  with conventional or ziconia abrasives in vitrified or resinoid bonds. These wheels required almost continuous dressing by the saw filer to retain the profile and prevent the wheels from burning the blade. Because our CBN wheels are electroplated onto a steel core, they offer significant advantages over the conventional abrasive wheels.



Advantages:



1. Wheel cores can be recycled and replated, thus reducing waste

2. No loss of profile during grinding, no dressing required
3. Cooler cutting CBN results in less metallurgical damage to the blade,
and longer life between re-grinds. No need to re-open the wheel face
4. The bandsaw itself is sharper after grinding and can be run at higher
production speeds
5. No abrasive dust generated that can damage machine components
6.Eliminates the possibility of wheel breakage
7. No loss in wheel diameter during grinding; wheel continues to operate
at the optimum peripheral speed


CBN Sharpening Wheels For Wood Band sawmill blades  7/39.5 with long working life and good sharpening surface



These sharpening grinding wheel we made is 7/39.5 for wood mizer saw blades, we can also made other CBN wheels

according to u band saw blades sample or band saw drawing size, if u can send us the grinding wheels drawing will

be much more better, any questions,pls just contact with miss Belle: whats app/ we chat: 0086-13783415132.
